Tramec Sloan S68TF-2-2 1468-02-02

Tramec Sloan S68TF-2-2

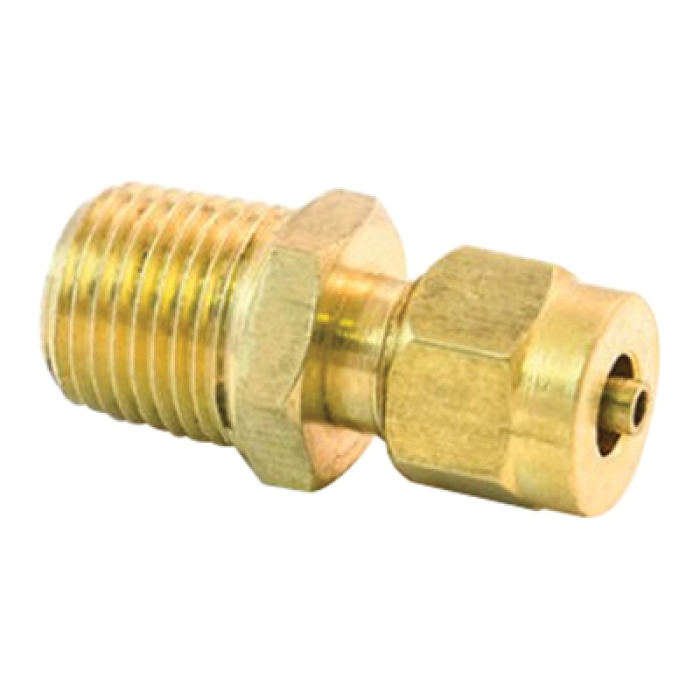

Tramec Sloan S68TF Brass Transmission Connector, 1/8 in Tube x 1/8 in MNPT

  • Manufacturer: Tramec Sloan
  • Brand: Tramec Sloan
  • ARGPN: 1468-02-02
  • MPN: S68TF-2-2
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Tramec Sloan factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Tramec Sloan Transmission Connector, Series: S68TF, Connection Type 1: Tube, Connection Size 1: 1/8 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/8 in, Up to 150 psi, Material Construction: Brass, Dimension Standards: SAE J246, -40 to 200 deg F

Connection Size 1      :      1/8 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Tube
Connection Type 2      :      NPT
Dimension Standards      :      SAE J246
Gender 2      :      Male
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      Up to 150 psi
Series      :      S68TF
Shape      :      Connector
Temperature Rating      :      -40 to 200 deg F
  • Brass transmission fittings utilize a specially designed slotted sleeve to help prevent notch stress related to over-torque
  • Fittings are designed to be used in pressure protected air transmission applications

Applications: For SAE J844 nylon tubing in pressure protected air transmission applications
