MIDLAND INDUSTRIES 30234 JF-08-08

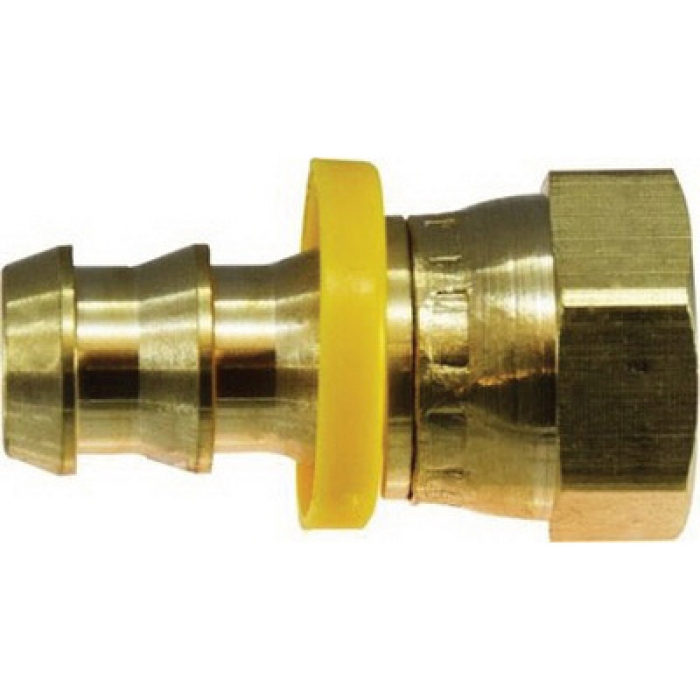

Midland Industries Brass Female SAE 45 deg/37 deg JIC Swivel Push-On Straight Connector

Midland Industries Push-On Straight Connector, Hose Barb X SAE 45 deg/37 deg JIC Swivel, Brass, 150 psi

  • Add to cart
    Add To Favorites
    • pin-int

    MIDLAND INDUSTRIES Push-On Straight Connector, Connection Type 1: Hose Barb, Connection Size 1: 1/2 in, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16 UNF, Hex Size: 0.87 in, 150 psi, Material Construction: Brass, Dimensions: 1.77 in L

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Size 2      :      1/2 in
    Connection Type 1      :      Hose Barb
    Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
    Dimensions      :      1.77 in L
    Gender 2      :      Female
    Hex Size      :      0.87 in
    Industry Category      :      Brass Fittings
    Material      :      Brass
    Material Construction      :      Brass
    Pressure Rating      :      150 psi
    Shape      :      Straight Connector
    Thread Size 2      :      3/4-16 UNF
    • Easy assembly, no clamps needed

    Applications: For low-pressure air, fuel, lube and oil lines

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
