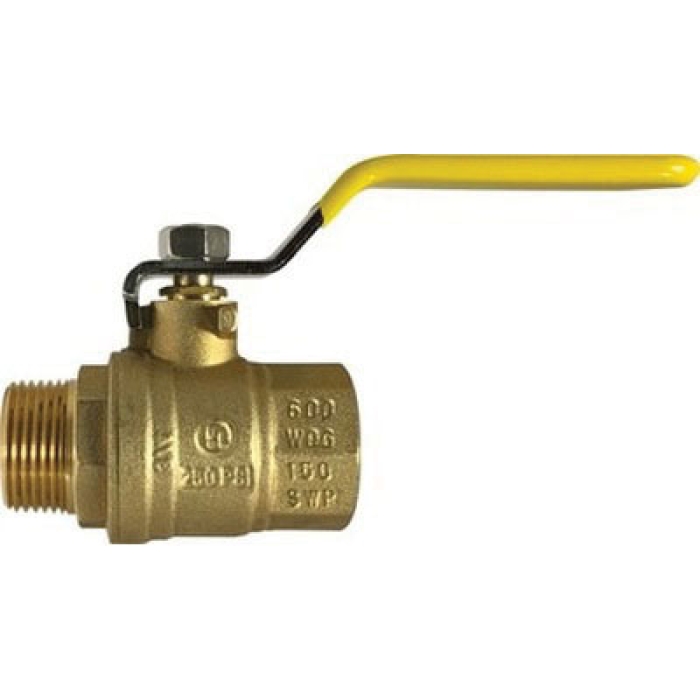

Midland Industries Chrome-Plated C37700 Forged Brass Full-Port Ball Valve
Midland Industries Full-Port Ball Valve, MPT x FPT, Chrome-Plated, C37700 Forged Brass, 600 psi
-
ARGPN: 948173
-
-
Nominal Size:
-
Nominal Size:
MIDLAND INDUSTRIES Full-Port Ball Valve, Nominal Size: 3/4 in, Connection Type: MPT x FPT, Actuator Type: Handle, Material Construction: C37700 Forged Brass, C37700 Forged Brass Stem, CS7700 Brass Ball, PTFE Seat Trim, Finish: Chrome-Plated, 2.61 in Length, -20 to 248 deg F, 600 psi
California residents see Prop 65 WARNINGS
| Actuator Type | : | Handle |
| Connection Type | : | MPT x FPT |
| Finish | : | Chrome-Plated |
| Length | : | 2.61 in |
| Material | : | Brass |
| Material Construction | : | C37700 Forged Brass |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 600 psi |
| Product Type | : | Ball Valve |
| Temperature Rating | : | -20 to 248 deg F |
| Trim Material | : | C37700 Forged Brass Stem, CS7700 Brass Ball, PTFE Seat |
- Minimal pressure drop due to large full size ports
- Bottom loaded pressure retaining stem
- Yellow vinyl insulator on heavy-duty-plated carbon steel handles
- Fast 1/4 turn open or close operation
- Flow both directions
- Low operating torque
- Adjustable stem packing gland
- Generic handles
- Each value is individually tested
- Not lead-free
- CS7700 brass reducing nut and end cap
Applications: For full range of liquids or gases
