MIDLAND INDUSTRIES 40140 BRNP150XCL

Description
Specs
Features
Documents

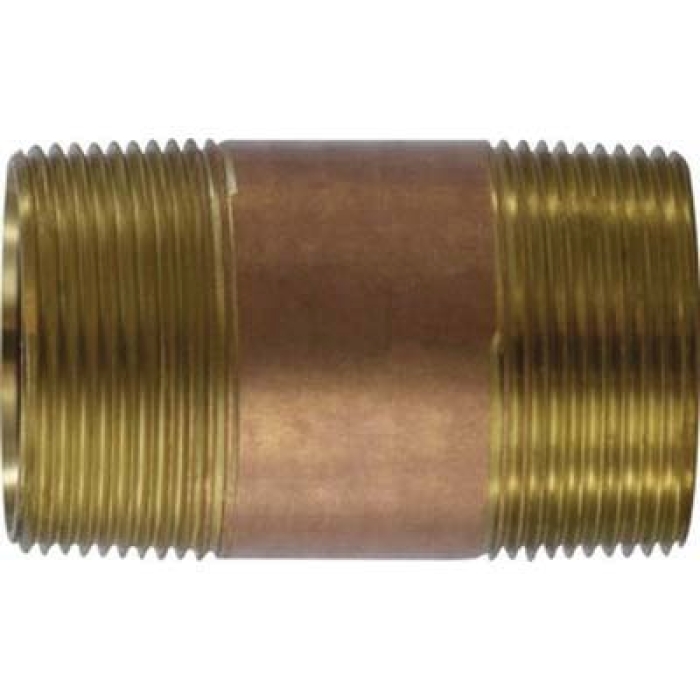

MIDLAND INDUSTRIES Seamless Close Nipple, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1-1/2 in, Thread Size 1: 1-1/2-11-1/2, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, SCH 40, 0.15 in Thick Wall, 630 psi at 100 deg F, Material Construction: Brass, Finish: Red, 1.9 in Diameter, 1-3/4 in Length, Dimension Standards: ANSI B1.20.1, WW-N-351, MS 51846

Connection Size 1	:	1-1/2 in
Connection Size 2	:	1-1/2 in
Connection Type 1	:	NPT
Connection Type 2	:	NPT
Diameter	:	1.9 in
Dimension Standards	:	ANSI B1.20.1, WW-N-351, MS 51846
Finish	:	Red
Gender 1	:	Male
Gender 2	:	Male
Length	:	1-3/4 in
Material	:	Brass
Material Construction	:	Brass
Pressure Rating	:	630 psi at 100 deg F
Schedule	:	SCH 40
Shape	:	Nipple
Thread Size 1	:	1-1/2-11-1/2
Thread Size 2	:	1-1/2-11-1/2
Wall Thickness	:	0.15 in

We hereby certify that to the best of our knowledge and belief the CDA 230 alloy seamless red brass pipe from which our nipples are produced meet the requirements of ASTM Specifications B43 and is free of mercury contamination. The chemical analysis is 85% copper, 15% zinc and conforms to Federal Specifications WWN-351.

Nipples are threaded with American Standard taper pipe threads (NPT) in accordance with screw-thread standard for Federal Services Handbook H-58. ANSI B1.20.1
This product is certified by NSF to NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and above
Lead-free

Applications: For use in drinking water supplies of pH 6.5 and above

Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf

Midland Industries Lead-Free Red Brass Seamless Nipple
