NRP Jones Black/Blue Nitrile Low Temp Hydraulic Braided Hose

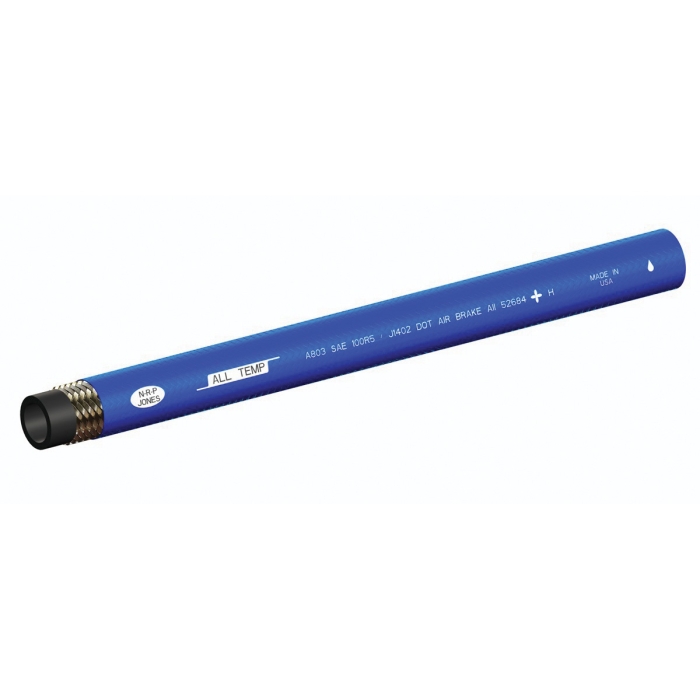

NRP Jones A803 Black/Blue Nitrile Low Temp Hydraulic Braided Hose, 3/16 in, 3000 psi
-
ARGPN: A803-04
-
-
Nominal Size:
-
Dash Size:
-
Nominal Size:
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for NRP Jones factory-direct delivery:
NRP Jones Low Temp Hydraulic Braided Hose, Series: A803, Nominal Size: 3/16 in, Dash Size: 04, 0.52 in OD, 3/16 in ID, 3000 psi, SAE Rating: SAE 100R5, Material Construction: Nitrile, Neoprene Cover, Construction: 1-High-Tensile Steel Wire Braid Over 1-Polyester Braid, Black/Blue, 3 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 300 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 3 in |
| Color | : | Black/Blue |
| Construction | : | 1-High-Tensile Steel Wire Braid Over 1-Polyester Braid |
| Cover Material | : | Neoprene |
| Dash Size | : | 04 |
| Inside Diameter | : | 3/16 in |
| Material | : | Nitrile |
| Material Construction | : | Nitrile |
| Nominal Size | : | 3/16 in |
| Outside Diameter | : | 0.52 in |
| Pressure Rating | : | 3000 psi |
| Product Type | : | Braided Hose |
| Resistance Properties | : | Oil |
| SAE Rating | : | SAE 100R5 |
| Series | : | A803 |
| Temperature High | : | 300 deg F |
| Temperature Low | : | -40 deg F |
- Black, oil-resistant, high-temperature nitrile (NBR) tube
- Friction layers under and over wire braid to improve tube and cover adhesion reinforcement
- Blue, oil-resistant polyester braid impregnated with neoprene (CR) cover
- Made in USA
Applications: High-temperature, medium pressure hydraulic applications using petroleum base hydraulic fluids
