Nycoil 63460 63460

Nycoil Polyurethane Fractional and Metric Tubing

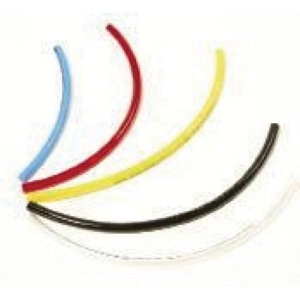

Nycoil 63460 Clear Polyurethane Fractional and Metric Tubing, 1 ft L, 267 psi at 68 deg F, 160 psi at 125 deg F

pin-int

Nycoil Fractional and Metric Tubing, Nominal Size: 1/8 in, 1/4 in OD, 1/8 in ID, 1 ft Length, Material Construction: Polyurethane, Clear, 267 psi at 68 deg F, 160 psi at 125 deg F, 0.062 in Thick Wall, 3/4 in Bend Radius, Resistance Properties: Abrasion, Chemical, -40 to 165 deg F

Bend Radius      :      3/4 in
Color      :      Clear
Inside Diameter      :      1/8 in
Length      :      100 ft
Material      :      Polyurethane
Material Construction      :      Polyurethane
Nominal Size      :      1/8 in
Outside Diameter      :      1/4 in
Pressure Rating      :      267 psi at 68 deg F, 160 psi at 125 deg F
Product Type      :      Tubing
Resistance Properties      :      Abrasion, Chemical
Temperature Rating      :      -40 to 165 deg F
Wall Thickness      :      0.062 in

Although 95A Durometer is the hardest compound used for Nycoil's Polyurethane tubing, it is still flexible and has a smaller bend radius (without kinking) than most other plastic tubing. Produced from raw materials that resists moisture, fungus, abrasion and a broad range of chemicals making it a popular choice for many applications.

  • Extreme flexibility
  • Reduced bend radius

Applications: Water and pneumatic lines, spot welders, machines, tools, pneumatic plumbing, pick and place automation
