OPW® T196SV

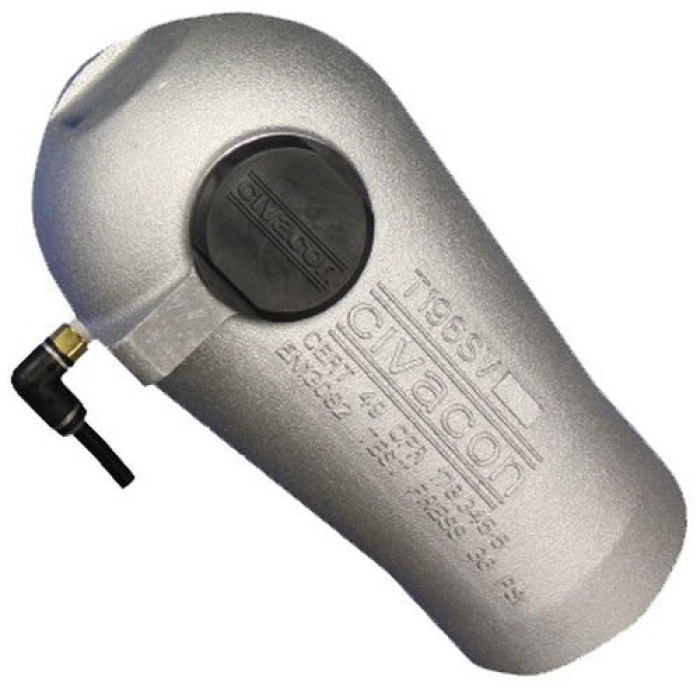

OPW® Civacon T196 Aluminum Vapor Recovery Vent, 3 in

  • Manufacturer: Dover Corporation
  • Brand: OPW®
  • ARGPN: T196SV
  • MPN: T196SV
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dover Corporation factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

OPW® Civacon Vapor Recovery Vent, Series: T196, Nominal Size: 3 in, Material Construction: Aluminum, Dimensions: 8.75 in L x 5.59 in H, -40 to 160 deg F

Dimensions      :      8.75 in L x 5.59 in H
Material      :      Aluminum
Material Construction      :      Aluminum
Nominal Size      :      3 in
Product Type      :      Vent
Series      :      T196
Temperature Rating      :      -40 to 160 deg F

Civacon T196 Series sequential vapor recovery vents for 16 in manholes have improved flow with less pressure drop. They will retro-fit all existing 3-1/2 in vapor vents and offers best-in class features.

  • Aluminum construction with FKM seals and stainless steel trim
  • Superior safety with CIVACON sequential valve technology
  • In case of rollover, poppet opens into the tank to prevent surge pressure leaks and spills from vapor valve
  • Valve stroke increased by 50%
  • Increased spring tension for a quick, tight closure
  • Dual fluorosilicon piston O-ring seals and a new lower shaft seal and wiper protect the air system
  • New added external exhaust port for quicker opening and closing of vent's poppet
  • Thread-in cap design eliminates snap ring
  • Improved flow rating and less pressure drop
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/CIVACON_T196SV_CAT_NEW2021.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/CIVACON_T196SV_II.pdf
