OPW® 66SB-1010 66SB-1010

OPW® 66SB-1010

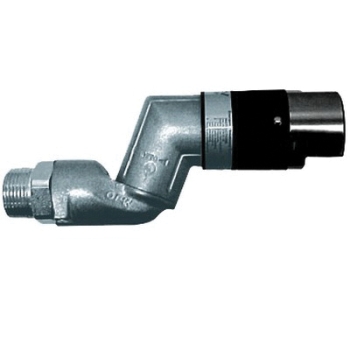

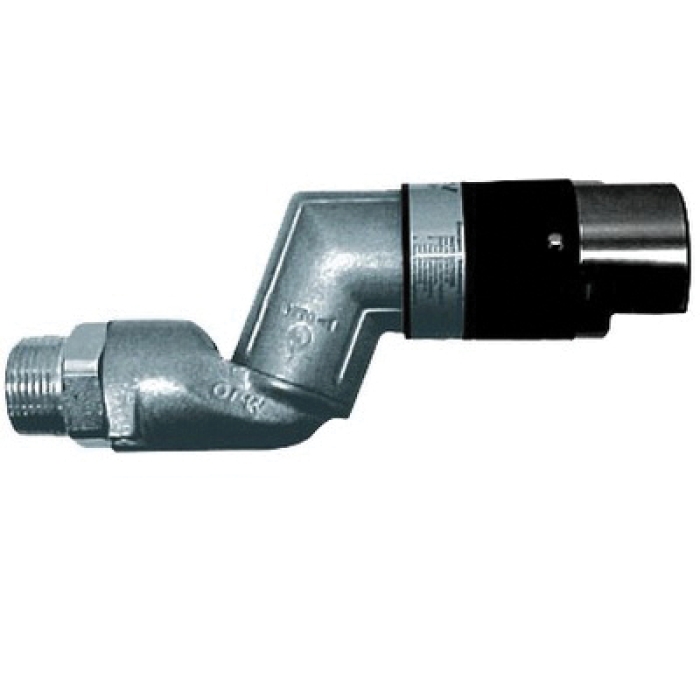

OPW® Midland 66SB Aluminum Reconnectable Swivel Breakaway, 1 in NPT, 8-1/2 in L x 2-1/2 in W

  • Manufacturer: Dover Corporation
  • Brand: OPW®
  • ARGPN: 66SB-1010
  • MPN: 66SB-1010
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dover Corporation factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

OPW® Midland Reconnectable Swivel Breakaway, Series: 66SB, Size: 1 x 1 in, Material Construction: Aluminum, Connection Type: NPT, 50 psi

Connection Type      :      NPT
Material      :      Aluminum
Material Construction      :      Aluminum
Pressure Rating      :      50 psi
Product Type      :      Reconnectable Breakaway
Series      :      66SB
Size      :      1 x 1 in
Sub Brand      :      Midland

The OPW® 66SB swivel breakaway is intended for easy installation at the nozzle inlet. The compact, lightweight design incorporates a 360 deg swivel rotation at both the male end and middle joint, with a simple and easily-reconnectable breakaway on the opposite end.

  • UL and ULc listed for use in gasoline, diesel and up to 10% ethanol blends
  • Pull force - the 66SB will break away with a pull force of no more than 350 lb
  • Easily reconnected at waist height after relieving line pressure, simply push coupling halves together until latched, reconnection force is approximately 15 lb
  • Protected coupling and poppet - the breakaway's poppet and sealing surface are protected from impact during separation by a plastic sleeve
  • Reduces connections - the single-unit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points
  • Double O-ring seal both swivel joints are protected by a double O-ring design
  • Poppet/nylon/HDPE sleeve, PTFE seal, stainless steel spring
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_H09214_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_66SB-1010_SS.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_66SB-1010_II.pdf
