OPW® 1673AN-SS15 1673AN-SS15

OPW® 1673AN-SS15

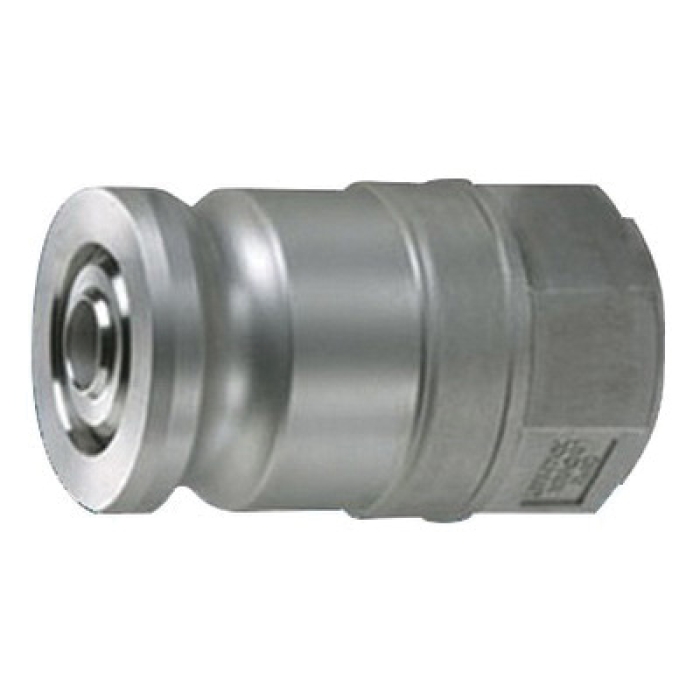

OPW® Midland Kamvalok® 1600AN Stainless Steel Dry Disconnect Adapter with PTFE/Silicone Seal, 1-1/2 in Adapter x 1-1/2 in FNPT

  • Manufacturer: Dover Corporation
  • Brand: OPW®
  • ARGPN: 1673AN-SS15
  • MPN: 1673AN-SS15
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dover Corporation factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

OPW® Midland Kamvalok® Dry Disconnect Adapter with PTFE/Silicone Seal, Series: 1600AN, Connection Type 1: Fitting, Connection Size 1: 1-1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1-1/2 in, Material Construction: Stainless Steel, Dimensions: 4-3/4 in L

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Dimensions      :      4-3/4 in L
Gender 2      :      Female
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Series      :      1600AN
Shape      :      Adapter
Sub Brand      :      Midland Kamvalok®

The 1600AN Series adapter is specifically designed to mate with OPW® Kamvalok® couplings to help prevent liquid spillage during the connection/disconnection process. The adapter contains a spring-loaded poppet to assure fast closing and a tight seal.

  • Stainless steel corrosion resistance comparable to 316 stainless steel
  • Female threads can be fitted to either a male pipe end or to a hose fitting
  • Spring-loaded poppet design assures fast closing and a tight seal
  • Eliminates a possible leak path
  • Poppet actuated design can only be opened with a Kamvalok® coupling, designed to provide a tight seal when closed
  • The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long life operation
  • Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence
  • PTFE/silicone O-ring seal
  • Duplex stainless steel internals
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kamvalok_1611AN-AL15_CAT.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kamvalok_1611AN-AL15_TD.pdf
