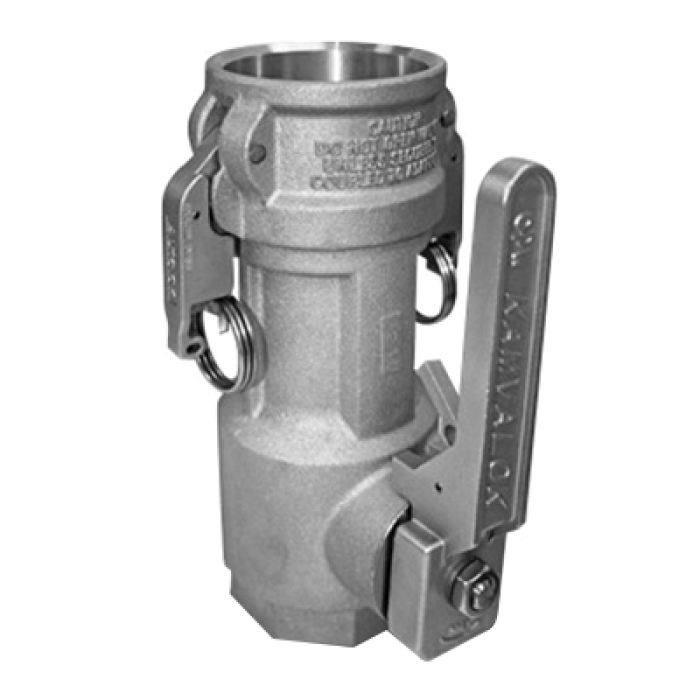

OPW® 1773DL-SS30

OPW® Midland Kamvalok® Dry Disconnect Coupler with PTFE Seal, Series: 1700DL, Connection Type 1: Fitting, Connection Size 1: 3 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3 in, 120 psi, Material Construction: Stainless Steel, Dimensions: 10.03 in L, -15 to 400 deg F

OPW® Kamvalok® dry disconnect couplings are considered the standard of the industry. Used at liquid-transfer points where product loss could occur, OPW® Kamvaloks® provide a reliable solution to prevent spillage during connection or disconnection.

• SST locking handle locks in position to prevent accidental opening or closing of valve
• Autolok™ locking arms provide added protection with an automatic locking mechanism signaled by a positive click, release requires only an easy tug on the lock release
• Provides for total closed-loop loading capabilities, keeps hazardous liquids and vapors inline and out of the environment
• Provides automatic closure from both directions the coupler and the adaptor to prevent accidental spills
• Spill protection helps reduce the hazards involved in the connection/disconnection process of transferring hazardous materials
• Safe and easy maintenance, unique stuffing-box design makes disassembly/maintenance quick and easy
• Can be coupled in any orientation 360 deg
• Automatically shut-off flow if accidental disconnect occurs
• PTFE O-ring seal
• Duplex stainless steel internals

• Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kamvalok_1611AN-AL15_CAT.pdf
• Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kamvalok_1711DL-AL15_SS.pdf
• Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kamvalok_1773DL-SS30_II.pdf
• Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kamvalok_1711DL-AL15_TD.pdf
