OPW® 1673ANF-SS30 1673ANF-SS30

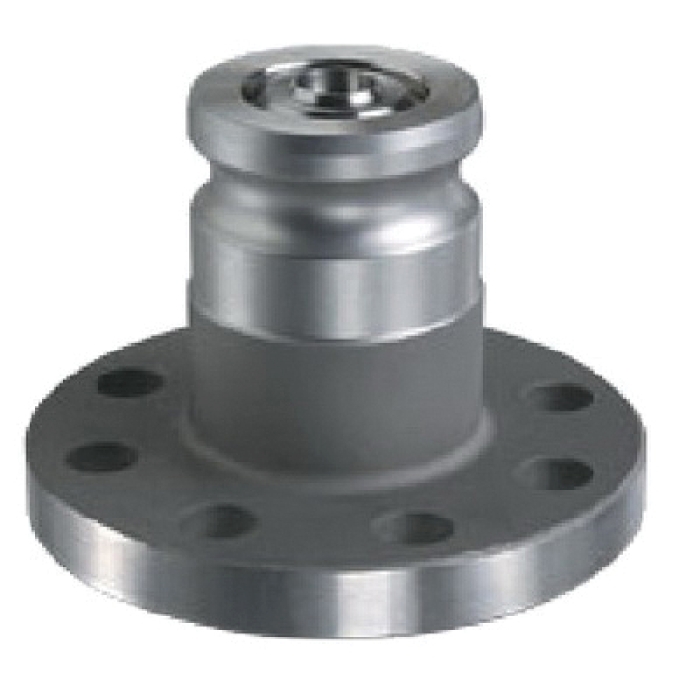

OPW® Midland Kamvalok® 1600ANF Stainless Steel Dry Disconnect Railcar Adapter

OPW® Midland Kamvalok® 1600ANF Dry Disconnect Railcar Adapter, Fitting X NPT Flange, Stainless Steel, 150 psi

  • ARGPN: 1673ANF-SS30 loading
    • Connection Size 1:
    • Connection Size 2:
pin-int

OPW® Midland Kamvalok® Dry Disconnect Railcar Adapter, Series: 1600ANF, Connection Type 1: Fitting, Connection Size 1: 3 in, Connection Type 2: NPT Flange, Gender 2: Female, Connection Size 2: 3 in, 150 psi, Material Construction: Stainless Steel, Dimensions: 6-9/16 in L

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Connection Type 1      :      Fitting
Connection Type 2      :      NPT Flange
Dimensions      :      6-9/16 in L
Gender 2      :      Female
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Pressure Rating      :      150 psi
Series      :      1600ANF
Shape      :      Adapter
Sub Brand      :      Midland Kamvalok®

The OPW® 1600ANF Series railcar adapters are designed specifically for applications using an ANSI flange. The OPW® 1600ANF dry disconnect adapters keep hazardous chemicals and vapors in-line and out of the environment. Rugged, yet quick and easy-to install, the 1600ANF Series is ideal for closed-loop loading conversions.

  • Stainless steel corrosion resistance comparable to 316 stainless steel
  • Female threads can be fitted to either a male pipe end or to a hose fitting
  • Spring-loaded poppet design assures fast closing and a tight seal
  • One less leak point
  • The poppet actuated design can only be opened with a Kamvalok® coupling, designed to provide a tight seal when closed
  • Provides easy connection access for tank cars, tank trucks, intermodal tanks, and in-process operations
  • Connects with Kamvalok® 1700 Series dry disconnect couplings
  • Can be quickly disassembled
  • Specifically designed for applications using ANSI flanges
  • PTFE/silicone O-ring seal
  • Duplex stainless steel internals
