OPW® 1431D-0101 1431D-0101

OPW® 1431D-0101

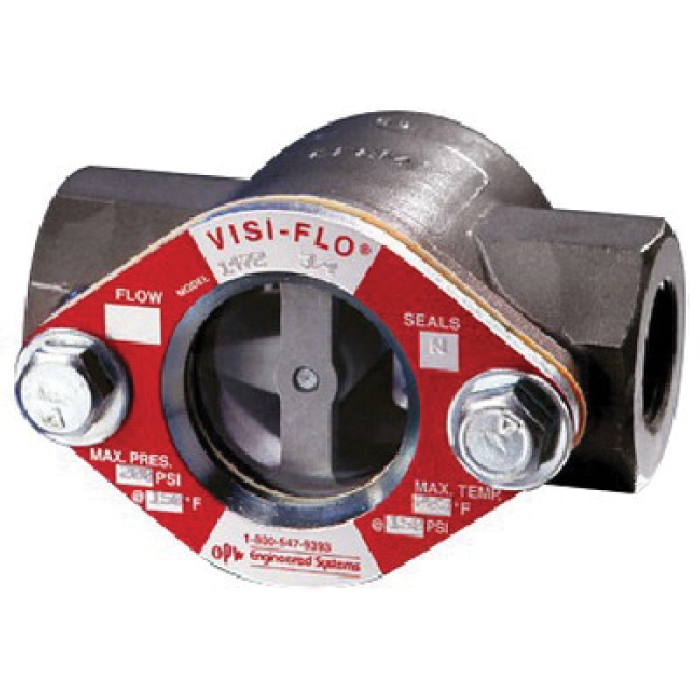

OPW® VISI-FLO® 1400 White Sight Flow Indicator, 1 in FNPT, 200 psi

  • Manufacturer: Dover Corporation
  • Brand: OPW®
  • ARGPN: 1431D-0101
  • MPN: 1431D-0101
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dover Corporation factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

OPW® VISI-FLO® Sight Flow Indicator, Series: 1400, Connection Size: 1 in, Connection Type: FPT, 4-1/8 in Length, 200 psi, Direction of Flow: Right to Left, 250 deg F at 135 psi, Tempered Soda Lime Window, Buna-N Seal, Delrin Indicator, White

Color      :      White
Connection Size      :      1 in
Connection Type      :      FPT
Direction of Flow      :      Right to Left
Indicator Material      :      Delrin
Length      :      4-1/8 in
Pressure Rating      :      200 psi
Product Type      :      Sight Flow Indicator
Seal Material      :      Buna-N
Series      :      1400
Sub Brand      :      VISI-FLO®
Temperature Rating      :      250 deg F at 135 psi
Window Material      :      Tempered Soda Lime

OPW® engineered systems has been manufacturing sight flow indicators for more than 60 years. Our experience has led to many innovations in design and manufacturing, making VISI-FLO® the most thoroughly engineered sight flow indicator on the market. VISI-FLOs are available in two Series the standard 1400 Series and the 1500 high-pressure /high-temperature Series.

  • Bronze construction
  • Propeller indicator - the best way to show flow of opaque liquids, ideal for observation at a distance, flow from right to left is standard, specify if left to right flow is needed, not recommended for flow rates above 100 gpm
  • Non-shielded
  • Exclusive 3-year "no-leak" guarantee an innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens for a longer-lasting and better seal than conventional flat seals
  • Maintenance-free design - bolt-on-body design requires no special maintenance or torqueing sequence in order to prevent leaks, resulting in safer operation than units using tie rods to fasten the lens and seal to the body
  • Dimensional interchangeability feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers units
  • High vacuum service rating - rated for vacuum service up to 635 mm at 85.5% vacuum, which equates to 12.3 psi vacuum

Applications: For applications with maximum operating pressure of 200 psi and/or temperature of 225 deg F

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/OPW_1431D-0101_CAT.pdf
