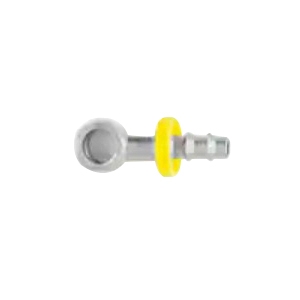

Parker® Push-Lok® 82 Series Zinc-Plated Steel Field Attachable Hydraulic Hose Fitting
Parker® Push-Lok® 82 Series Field Attachable Hydraulic Hose Fitting, Zinc-Plated Steel
-
ARGPN: 34982-14-6
-
-
Connection Size 1:
-
Connection Size 2:
-
Connection Size 1:
Parker® Push-Lok® Field Attachable Hydraulic Hose Fitting, Series: 82, Connection Type 1: Barb, Connection Size 1: 3/8 in, Connection Type 2: Metric Banjo, Connection Size 2: 14 mm, Material Construction: Steel, Finish: Zinc-Plated, For Use With: 801, 804, 821, 821FR, 836 Hoses
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 14 mm |
| Connection Type 1 | : | Barb |
| Connection Type 2 | : | Metric Banjo |
| Finish | : | Zinc-Plated |
| For Use With | : | 801, 804, 821, 821FR, 836 Hoses |
| Material | : | Steel |
| Material Construction | : | Steel |
| Series | : | 82 |
| Shape | : | Hose Fitting |
| Sub Brand | : | Push-Lok® |
Parker No-Skive 82 Series Push-Lok® fittings are push-on, barb-style field-attachable hydraulic fittings that allow users to quickly and easily make hose assemblies right on the job site without special tools. When coupled with Parker's No-Skive hoses, 82 Series fittings deliver convenience and shorter assembly times, as no clamp is required. Reusable 82 Series fittings feature a one-piece construction for reduced complexity and less chance of leakage. Compatible with the Push-Lok family of multipurpose hoses, 82 Series fittings can be used with high temperature, dry air, hot water, fire-resistant and higher pressure hoses.
- Can be assembled in field with wrenches
- Imperial hex
- One piece reduces complexity and leakage path
- No-Skive technology offers easy, efficient and safe production processes
Applications: For petroleum base hydraulic fluids and lubricating oils, pneumatic, antifreeze solutions, diesel fuels, phosphate ester, dry air and water
