Pressure Components BK3-1-SAE-1125-L BK3-1-SAE-1125-L

Pressure Components BK3-1-SAE-1125-L

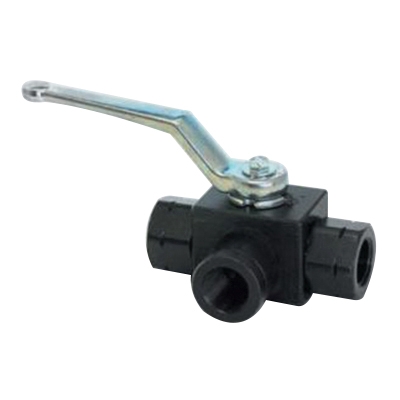

Pressure Components BK3 Black Oxide Stainless Steel 3-Way Full-Port Block Body Ball Valve, 1 in ORB, 5145 psi

  • Manufacturer: Pressure Components
  • Brand: Pressure Components
  • ARGPN: BK3-1-SAE-1125-L
  • MPN: BK3-1-SAE-1125-L
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Pressure Components factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Pressure Components 3-Way Full-Port Block Body Ball Valve, Series: BK3, Nominal Size: 1 in, Connection Type: ORB, Material Construction: Stainless Steel, Nickel Plated Ball, Polyacetal Ball Seat Trim, FKM/FPM Seal, Finish: Black Oxide, 4.45 in Length, 2.36 in Width, -20 to 215 deg F, 5145 psi

Connection Type      :      ORB
Finish      :      Black Oxide
Length      :      4.45 in
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Nominal Size      :      1 in
Pressure Rating      :      5145 psi
Product Type      :      Ball Valve
Seal Material      :      FKM/FPM
Series      :      BK3
Temperature Rating      :      -20 to 215 deg F
Trim Material      :      Nickel Plated Ball, Polyacetal Ball Seat
Width      :      2.36 in

Warranty: 1 Year

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Pressure_Components_BK31SAE1125L_CAT.pdf
