Proco 020X0661RE

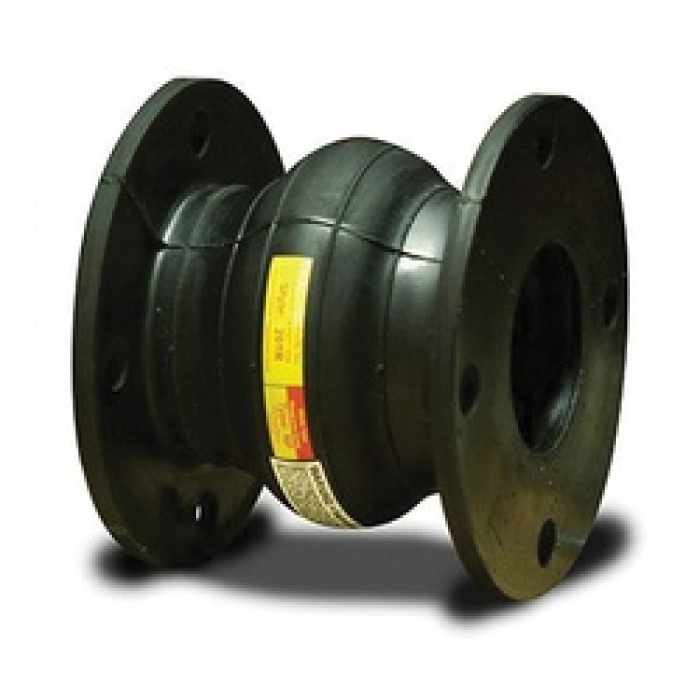

Proco 020X0661RE Style 261R Molded Wide Arch Expansion Joint, 2 in Flanged, EPDM
- Manufacturer: Proco Products
- Brand: Proco
- ARGPN: 020X0661RE
- MPN: 020X0661RE
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Proco Products factory-direct delivery:
-
PROCO style 261R molded wide arch expansion joints have the lowest spring rates of any expansion joints currently on the market. They also boast low forces to deflect and are built to withstand even the most rigorous piping system configurations. They allow for axial compression or axial extension and lateral deflection as well as angular and torsional movements.
Proco Molded Wide Arch Expansion Joint, Series: 260R Series, Expansion Joint Fitting, 2 in Connection, Flanged Connection Type, EPDM, EPDM Material Construction, 3/8 in Flange Thickness, 4 Bolt Holes, 3/4 in Bolt Hole Dia, 225 psig, 6 in L, Additional Information: Style 261R
| Additional Information | : | Style 261R |
| Bolt Hole Diameter | : | 3/4 in |
| Connection Size | : | 2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 6 in L |
| Fitting Type | : | Expansion Joint |
| Flange Thickness | : | 3/8 in |
| Material | : | EPDM |
| Material Construction | : | EPDM |
| Number of Bolt Holes | : | 4 |
| Pressure Rating | : | 225 psig |
| Series | : | 260R Series |
Absorption of directional movement|Absorption of vibration, noise and shock|Compensation for misalignment|Self-cleaning wide arch|Lighter weight
