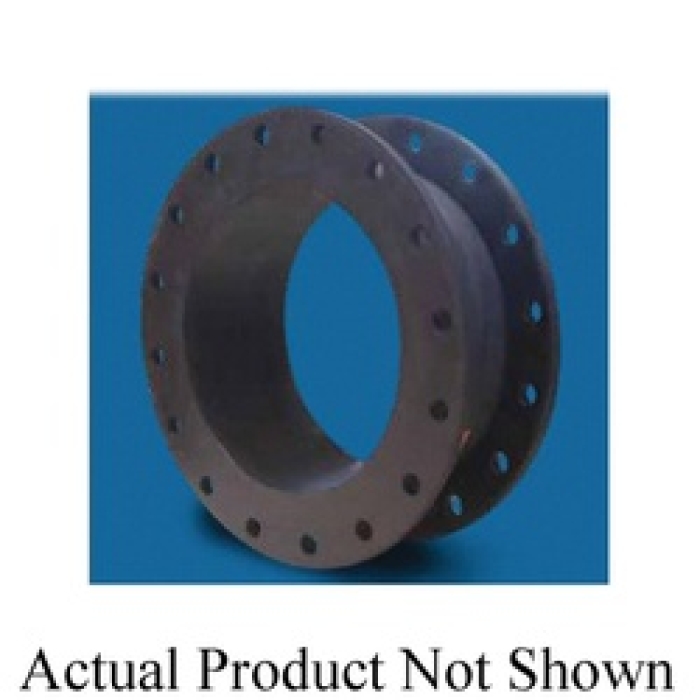

Proco 10X8 FA231/EE EXP JT

Proco Open and Filled Arch Expansion Joint, Series: 230 Series, Expansion Joint Fitting, 10 in Connection, Flanged Connection Type, EPDM, EPDM Material Construction, Red, 0.63 in Flange Thickness, 12 Bolt Holes, 1 in Bolt Hole Dia, 190 psig, 8 in L, 250 deg F, Additional Information: Style FA231

Additional Information	:	Style FA231
Bolt Hole Diameter	:	1 in
Color	:	Red
Connection Size	:	10 in
Connection Type	:	Flanged
Dimensions	:	8 in L
Fitting Type	:	Expansion Joint
Flange Thickness	:	0.63 in
Material	:	EPDM
Material Construction	:	EPDM
Number of Bolt Holes	:	12
Pressure Rating	:	190 psig
Series	:	230 Series
Temperature Rating	:	250 deg F

Absorbs directional movement - thermal movements appear in any rigid pipe system due to temperature changes|The Series 230 wide arch expansion joints allow for axial compression or axial extension, lateral deflection as well as angular and torsional movements|Less turbulence or material entrapment - the Series 230 expansion joints are manufactured with the integral rubber flange joining the body at a true 90 deg angle|This ensures the product will install snug against the mating pipe flange free of voids creating less turbulence in the pipe system|The Series 230 is also available with a filled arch for applications that have 20% or more solids in the process|Absorbs vibration, noise and shock - the PROCO Series 230 rubber expansion joints effectively dampen and insulate downstream piping against the transmission of noise and vibration generated by mechanical equipment|Noise and vibrations caused by equipment can cause stress in pipe, pipe guides, anchors and other equipment downstream|The Series 230 expansion joints will help relieve noise and vibration occurrences in a pipe system|Water hammer and pumping impulses can also cause strain, stress or shock to a piping system|Install the Series 230 to help compensate for these system pressure spikes|Compensates for misalignment - rubber expansion joints are commonly used by contractors and plant personnel to allow for slight pipe misalignment during installation of new piping and or replacement applications|Wide service range and less weight - engineered to operate up to 200 psig (nominal size dependent) or up to 250 deg F (elastomer dependent), the Series RC 231 and RE 231 can be specified for a wide range of piping system requirements|The Series 230 rubber expansion joints are constructed in various elastomers with rubber impregnated polyester tire cord and reinforced with wire to create a product with greater operating performance

• Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PROCO_020X0831E_Catalog.pdf
