Proco 12X14 262RE/E

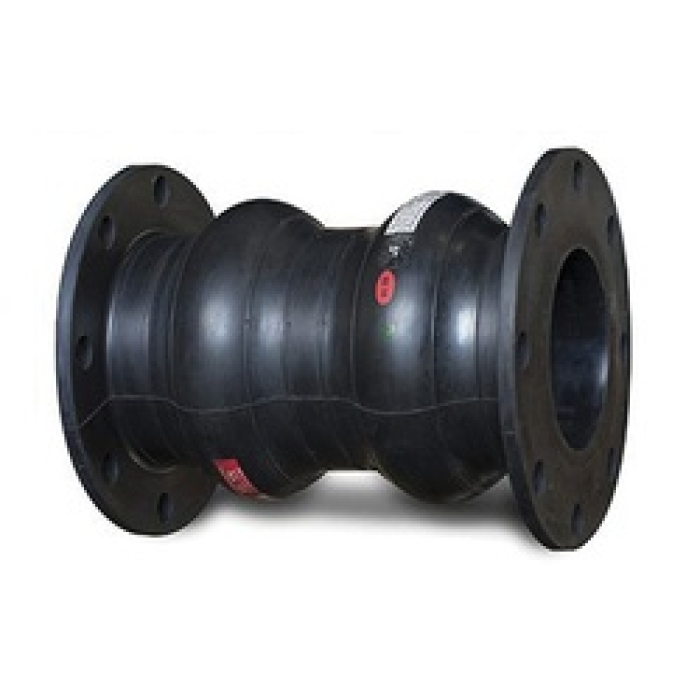

Proco 12X14 262RE/E Style 262R Molded Wide Double Arch Expansion Joint, 12 in Flanged, EPDM
- Manufacturer: Proco Products
- Brand: Proco
- ARGPN: 12X14 262RE/E
- MPN: 12X14 262RE/E
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Proco Products factory-direct delivery:
-
PROCO style 262R molded wide double arch expansion joints have the lowest spring rates of any expansion joints currently on the market. They also boast low forces to deflect and are built to withstand even the most rigorous piping system configurations. They allow for axial compression or axial extension and lateral deflection as well as angular and torsional movements.
Proco Molded Wide Double Arch Expansion Joint, Series: 260R Series, Expansion Joint Fitting, 12 in Connection, Flanged Connection Type, EPDM, EPDM Material Construction, Red, 5/8 in Flange Thickness, 12 Bolt Holes, 1 in Bolt Hole Dia, 150 psig, 14 in L, 250 deg F, Additional Information: Style 262R
| Additional Information | : | Style 262R |
| Bolt Hole Diameter | : | 1 in |
| Color | : | Red |
| Connection Size | : | 12 in |
| Connection Type | : | Flanged |
| Dimensions | : | 14 in L |
| Fitting Type | : | Expansion Joint |
| Flange Thickness | : | 5/8 in |
| Material | : | EPDM |
| Material Construction | : | EPDM |
| Number of Bolt Holes | : | 12 |
| Pressure Rating | : | 150 psig |
| Series | : | 260R Series |
| Temperature Rating | : | 250 deg F |
