Proco C04002506KB

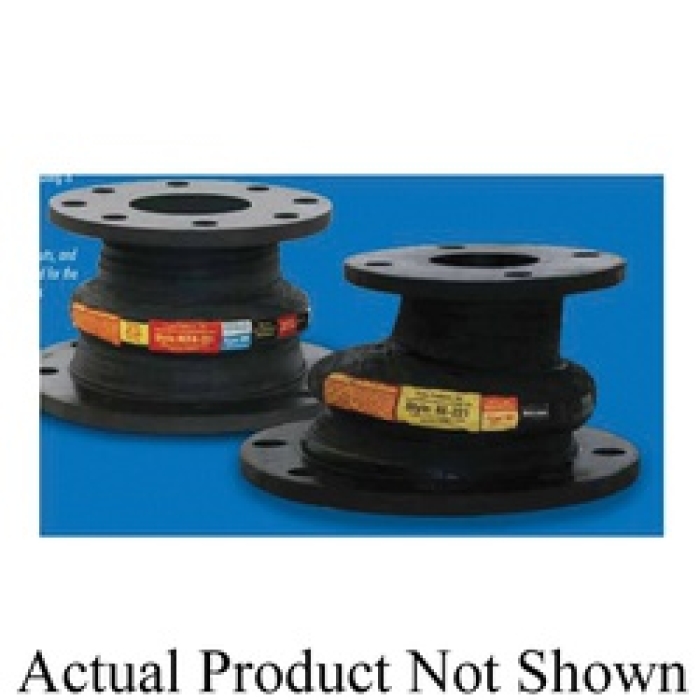

Proco C04002506KB Style RC-221 Narrow Arch Expansion Joint, 4 x 2-1/2 in Flanged, Chlorobutyl
- Manufacturer: Proco Products
- Brand: Proco
- ARGPN: C04002506KB
- MPN: C04002506KB
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Proco Products factory-direct delivery:
-
Proco Narrow Arch Expansion Joint, Series: RC Series, Expansion Joint Fitting, 4 x 2-1/2 in Connection, Flanged Connection Type, Chlorobutyl, Chlorobutyl Material Construction, 0.472 in Flange Thickness, 4 Bolt Holes, 3/4 in Bolt Hole Dia, 200 psig, 6 in L, Additional Information: Style RC-221
| Additional Information | : | Style RC-221 |
| Bolt Hole Diameter | : | 3/4 in |
| Connection Size | : | 4 x 2-1/2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 6 in L |
| Fitting Type | : | Expansion Joint |
| Flange Thickness | : | 0.472 in |
| Material | : | Chlorobutyl |
| Material Construction | : | Chlorobutyl |
| Number of Bolt Holes | : | 4 |
| Pressure Rating | : | 200 psig |
| Series | : | RC Series |
Absorbs directional movement - thermal movements appear in any rigid pipe system due to temperature changes|Less turbulence or material entrapment - expansion joints are manufactured with the integral rubber flange joining the body at a true 90 deg angle|This ensures the product will install snug against the mating pipe flange free of voids creating less turbulence in the pipe system|For applications where 20% or more solids are present, use the filled arch RCFA 231 and REFA 231 expansion joints for smooth bore transition with no possibility for material entrapment|Absorbs vibration, noise and shock - the PROCO style RC 231 and RE 231 rubber expansion joints effectively dampen and insulate downstream piping against the transmission of noise and vibration generated by mechanical equipment|Noise and vibrations caused by equipment can cause stress in pipe, pipe guides, anchors and other equipment downstream|The style RC 231 and RE 231 expansion joints will help relieve noise and vibration occurrences in a pipe system|Water hammer and pumping impulses can also cause strain, stress or shock to a piping system|Install the style RC 231 and RE 231 to help compensate for these system pressure spikes|Compensates for misalignment - rubber expansion joints are commonly used by contractors and plant personnel to allow for slight pipe misalignment during installation of new piping and or replacement applications|Wide service range and less weight - engineered to operate up to 200 psig (nominal size dependent) or up to 250 deg F (elastomer dependent), the Series RC 231 and RE 231 can be specified for a wide range of piping system requirements
