PT Coupling 1400340 40C SS DOM

PT Coupling Stainless Steel Female Type C x Hose Shank Cam and Groove Coupler

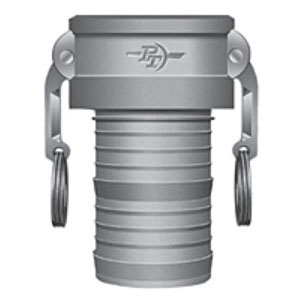

PT Coupling 1400340 Stainless Steel Cam and Groove Coupler, 4 in Female Type C x 4 in Hose Shank

  • Add to cart
    Add To Favorites
    • pin-int

    PT Coupling Cam and Groove Coupler, Connection Type 1: Type C, Gender 1: Female, Connection Size 1: 4 in, Connection Type 2: Hose Stem, Connection Size 2: 4 in, 150 psi, Material Construction: Stainless Steel, Dimensions: 6.56 in OD x 6.64 in L, -150 deg F

    Connection Size 1      :      4 in
    Connection Size 2      :      4 in
    Connection Type 1      :      Type C
    Connection Type 2      :      Hose Stem
    Dimensions      :      6.56 in OD x 6.64 in L
    Gender 1      :      Female
    Material      :      Stainless Steel
    Material Construction      :      Stainless Steel
    Pressure Rating      :      150 psi
    Shape      :      Coupler
    Temperature Rating      :      -150 deg F
    • PT hose shanks are the most versatile for attaching to hose, the specially designed multi-barbed shank allows for attachment via original Punch-Lok™ center punch clamps or by an interlocked ProGrip™ C-50 ferrule or sleeve
    • All stainless steel castings are 316 and all standard components are 300 series stainless steel
    • Made in USA

    Warranty: Limited

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PT_Coupling_54907104_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PT_Coupling_1400340_SS.pdf
    • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PT_Coupling_54907104_II.pdf
    • Warranty PDF https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PT_Coupling_54007108_W.pdf
