Reelcraft® F7925 OLP

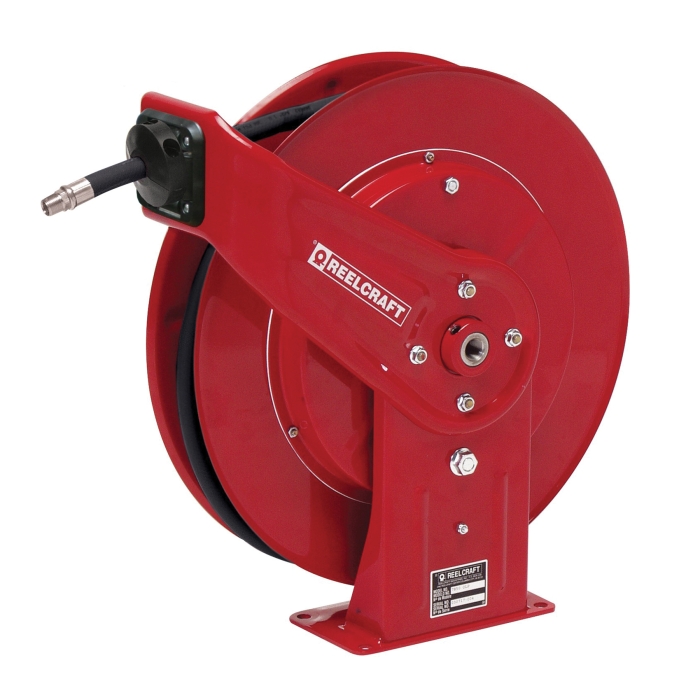

Reelcraft® Spring Retractable Heavy-Duty Low Pressure Fuel Hose Reel, Series: F, 25 ft Length Hose, 3/4 in Hose Inside Diameter, 1.18 in Hose Outside Diameter, Inlet Size: 3/4 in FPT in, Outlet Size: 3/4 in MPT, Winding Method: Spring Retractable, Material Construction: Carbon Steel, Finish: Powder-Coated, Red, Bench, Ceiling, Floor, Truck, Wall Mount, 150 deg F, 50 psi, Dimensions: 20-1/4 in L x 19-3/4 in W x 7 in H, Includes: Hose

California residents see Prop 65 WARNINGS

Reelcraft®'s spring retractable fuel delivery reels, equipped with FKM seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series F7000 reels are supplied with our ball-bearing style swivel.

• Robust latching mechanism - latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear
• The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
• Quality finish and corrosion-resistant - individually powder-coated components along with the composite spool offers the maximum protection from premature corrosion
• Open style

Applications: For fuel applications including E85

• Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_7850_OLP_CAT_NEW2021.pdf
• Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_F7925_OLP_II.pdf
• Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_F7925_OLP_TD.pdf
