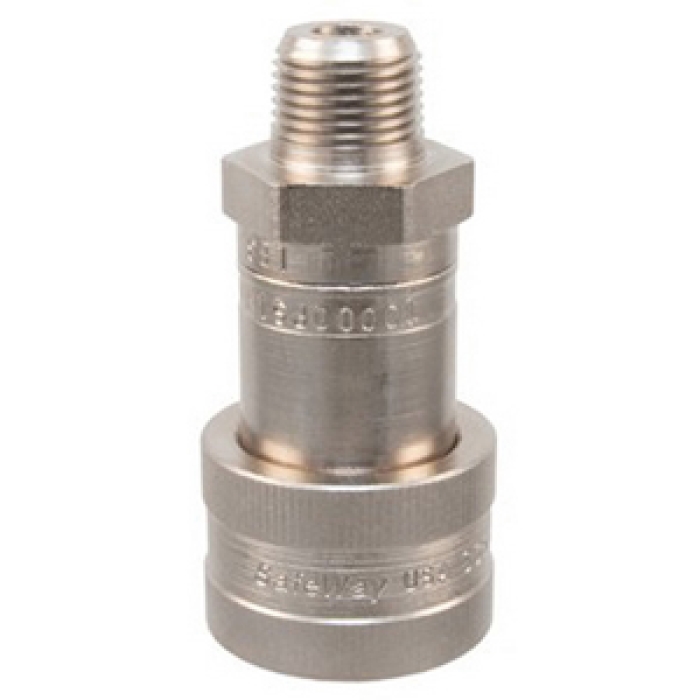

SafeWay® S35-3P Steel High-Pressure Hydraulic Body Half Socket, 3/8 in MNPT x 3/8 in FNPT

  • Manufacturer: The Specialty Mfg. Co
  • Brand: SafeWay®
  • ARGPN: S35-3P
  • MPN: S35-3P
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for The Specialty Mfg. Co factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

SafeWay® High-Pressure Hydraulic Body Half Socket, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, Hex Size: 1 in, 10000 psi, Material Construction: Steel, Dimensions: 2.817 in L x 1.38 in D, -40 to 250 deg F

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Dimensions      :      2.817 in L x 1.38 in D
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      1 in
Industry Category      :      Hydraulic Quick Disconnects
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      10000 psi
Shape      :      Socket
Temperature Rating      :      -40 to 250 deg F

The S30 Series is a special purpose, double shut-off fluid transfer quick coupling that provides significantly less pressure drop than couplings of the same type produced by other manufacturers. A threaded sleeve locking mechanism mates the coupling halves and allows connection under pressure up to a maximum of 1000 psi. Our heavy-duty poppet valving, while fully interchangeable with ball check models (including older SafeWay product), eliminates low pressure leakage. The S30 is designed for extreme high-pressure applications including portable hydraulic rams, wire pullers, and frame straightening equipment.

  • 1.02 in wrench flat
  • Nitrile (Buna-N) seal material
  • Poppet (O-ring seal) valve type
  • Threaded lock style
  • SafeWay's S30 Series outperforms other brands by 100%
  • Full flow design provides less than half the pressure loss of other brands, allowing for quicker ram response
  • Meets dimensional requirements of this accepted interchange
  • Poppet style valving with double shut-off, captive poppet seal provides a durable, guaranteed leak-free seal
  • All S30 Series quick couplings are 100% leak tested
  • Fully interchangeable, half-for-half, with ball valve designs
  • Machined from solid steel barstock
  • Designed for extreme high-pressure applications such as portable hydraulic rams, wire pullers and more

Applications: For hydraulic jacks, industrial plants, maintenance and repair operations, marine and defense, and rescue equipment

  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Safeway_Hydraulics_S35-3P_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Safeway_Hydraulics_S35-3P_TD.pdf
