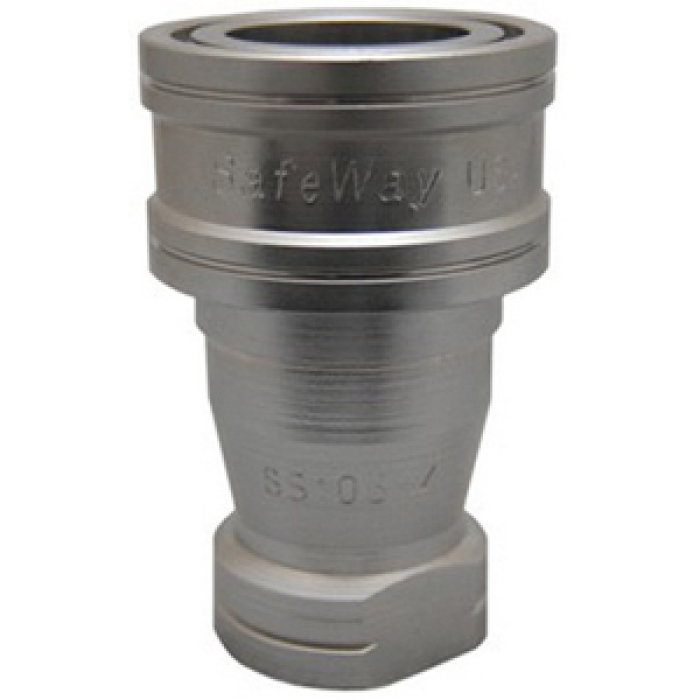

SafeWay® SS105-3

SafeWay® Quick Coupler, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, 5000 psi, Material Construction: 303 Stainless Steel, Dimensions: 2.48 in L, -40 to 250 deg F

SafeWay® SS10 Series is a general-purpose, double shut-off quick coupler capable of enabling quick fluid transfer connections for a wide variety of fluids. Primarily used for the transfer of hydraulic fluid, stainless steel quick-disconnects can also be used with water, steam, chemicals and some gases. Stainless steel quick-disconnects are widely used in both stationary and mobile industrial, agricultural, construction, food processing and electronics applications. All the stainless steel quick-disconnects from SafeWay benefit from close attention to detail and the highest-quality standards. SafeWay® specializes in adding value to fluid transfer system designs to optimize function and manufacturability.

• Interchangeable half-for-half with Eaton HK Series, Parker/Pioneer 60 Series, Faster HNV Series as well as others conforming to this interchange
• Double shut-off poppet style valving with captive poppet seal provides a durable, guaranteed leak-free seal
• Full flow design for optimum system performance
• All SS10 Series quick couplings are 100% leak tested
• Stainless steel SS10 Series couplers are supplied with hardened stainless steel locking detent balls, poppet valve springs and retaining rings for increased corrosion resistance
• Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.R2, hydraulic fluid power - quick action couplings - test methods

Applications: For chemical processing, construction, food and beverage, forestry, industrial plants, maintenance and repair operations, marine and defense, oil and gas, transportation, utility

• Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/SafeWay_SS105-3_SS.pdf
