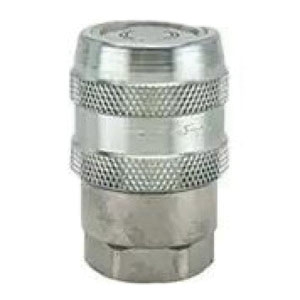

Snap-tite 71 Series Zinc Trivalent-Plated Steel High-Pressure Non-Spill Quick Coupling

Snap-tite High-Pressure Non-Spill Quick Coupling, Series: 71, Connection Type 1: Push-to-Connect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-3/4 in, 7500 psi Working, 15000 psi Minimum Burst, Material Construction: Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.25 in Dia x 3.05 in L, -40 to 250 deg F, For Use With: Snap-Tite 71 Series Nipple

California residents see Prop 65 WARNINGS

Parker's Snap-tite 71 Series couplings are designed for working pressures up to 10000 psi. Air inclusion and fluid loss are minimal with the flush face valves. Large flow chambers in the body and an exclusive valve design permit superior flow while maintaining low pressure drop.

• Push-to-connect operation makes connection easy
• Non-spill valves minimize fluid loss when disconnecting to reduce environmental contamination and avoid safety hazards caused by spillage
• Flush face valves minimize the amount of air that can enter the system when connecting fluid lines
• Heavy-duty construction
• Designed for up to 10000 psi (690 bar) working pressures
• Superior flow and low-pressure drop
• Sleeve lock design to protect against accidental disconnection
• Nitrile seal

Applications: For in-plant equipment, oil exploration and production, construction equipment

• Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Snap-tite_711C88F_CAT.pdf
