Stucchi 801301006 801301006

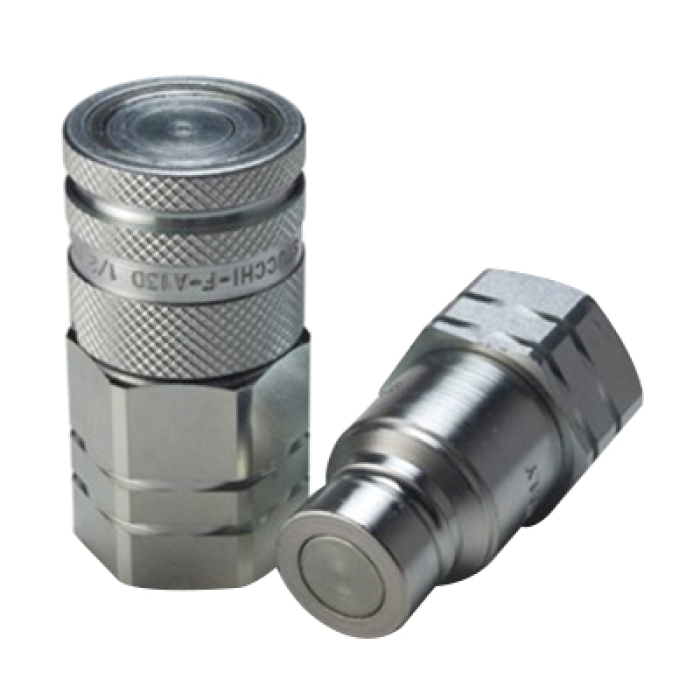

Stucchi A Premier Female Coupler x FNPT Carbon Steel Flat Face Interchange Coupling

Stucchi A Premier Flat Face Interchange Coupling, Fitting X NPT, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Stucchi Flat Face Interchange Coupling, Series: A Premier, Connection Type 1: Fitting, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, Hex Size: 1.18 in, 5075 psi, Material Construction: Carbon Steel, Dimensions: 2.55 in L x 1.26 in W, Dimension Standards: ISO 16028

    Connection Size 1      :      3/8 in
    Connection Size 2      :      3/8 in
    Connection Type 1      :      Fitting
    Connection Type 2      :      NPT
    Dimension Standards      :      ISO 16028
    Dimensions      :      2.55 in L x 1.26 in W
    Gender 1      :      Female
    Gender 2      :      Female
    Hex Size      :      1.18 in
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Pressure Rating      :      5075 psi
    Series      :      A Premier
    Shape      :      Coupling

    The A Premier Series flat face ISO 16028 interchange couplings offer higher pressure ratings, superior flow characteristics and lower pressure drops compared to FIRG Series or competitors products. Specifically designed for applications needing no-leak performance and the ideal solution for limiting contamination in hydraulic circuits, the non-spill design avoids fluid loss during connection and disconnection.

    • Lock system stops unwanted disconnection
    • Modular structure for multiple port option
    • Hardened steel, 12 to 20 balls reduce brinelling
    • Specifically designed for applications needing no-leak performance
    • Ideal for limiting contamination in hydraulic circuit

    Applications: For applications involving high-pressure impulses in agriculture equipment, mobile construction equipment, oil, gas exploration and general industrial plants

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_801301012_CAT.pdf
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_801301012_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_801301012_TD.pdf
