Stucchi 801301010 801301010

Stucchi 801301010

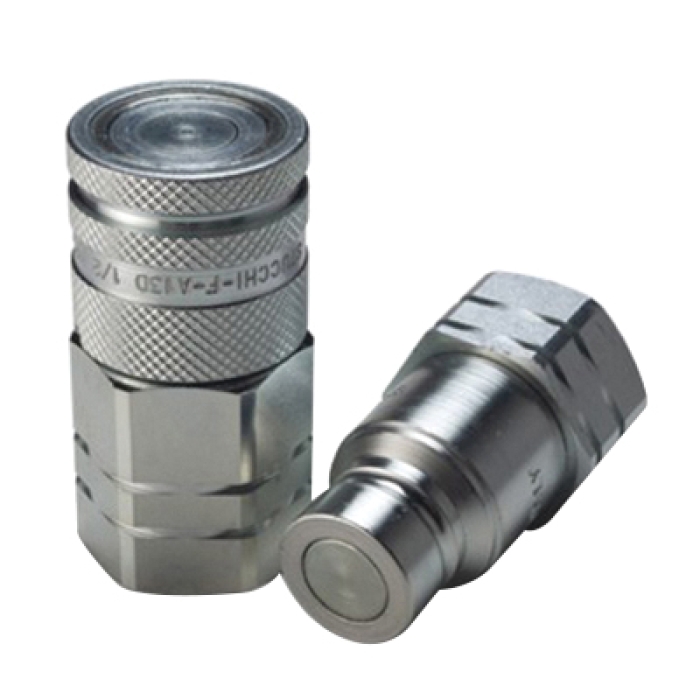

Stucchi A-Premier Series Carbon Steel Flat Face Interchange Coupler, 1/2 in Coupler x 1/2 in FNPT

  • Manufacturer: Stucchi USA
  • Brand: Stucchi
  • ARGPN: 801301010
  • MPN: 801301010
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Stucchi USA factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Stucchi Flat Face Interchange Coupler, Series: A-Premier, Connection Type 1: Fitting, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, Hex Size: 1.42 in, 4785 psi, Material Construction: Carbon Steel, Dimensions: 3.02 in L x 1.5 in W, Dimension Standards: ANSI B1.20.1, -20 to 100 deg C

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Dimension Standards      :      ANSI B1.20.1
Dimensions      :      3.02 in L x 1.5 in W
Gender 2      :      Female
Hex Size      :      1.42 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      4785 psi
Series      :      A-Premier
Shape      :      Coupler
Temperature Rating      :      -20 to 100 deg C

Series "A" is the evolution of Stucchi technology and quality applied to flat face couplings. The series has a internal design combined with a high-resistance material to allow the achievement of higher operating pressure and minimal pressure drop. The modular structure allows the flexibility to offer several-types of threads or special ports in order to satisfy diverse applications while maintaining a compact dimension. These features make series "A" couplings the leader in many hydraulics applications where high-performance is necessary with the elimination of fluid loss and contamination in the circuit.

  • Flat face is easy-to-clean, reducing the inclusion of contamination to the hydraulic circuit
  • Minimal fluid loss during disconnection, reducing fluid loss to the environment
  • Minimal air inclusion during connection/disconnection
  • Patented internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system
  • The modular design allows flexibility with a wide range of configurations
  • Good resistance at impulse pressures
  • Compact slim design
  • Safe and simple to use
  • Specifically designed for applications needing no-leak performance
  • Interchanges with ISO 16028
  • Lock system stops unwanted disconnection
  • Modular structure for multiple port option
  • Hardened steel, 12 to 20 balls reduce brinelling
  • Push pull connection system
  • 5.02 in overall length

Applications: For limiting contamination in hydraulic circuit, high pressure impulses in agriculture equipment, mobile construction equipment, oil and gas exploration and general industrial plants

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_F. A13D 1_2 NPT_CAT.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_F. A13D 1_2 NPT_II.pdf
