Stucchi 805204003 805204003

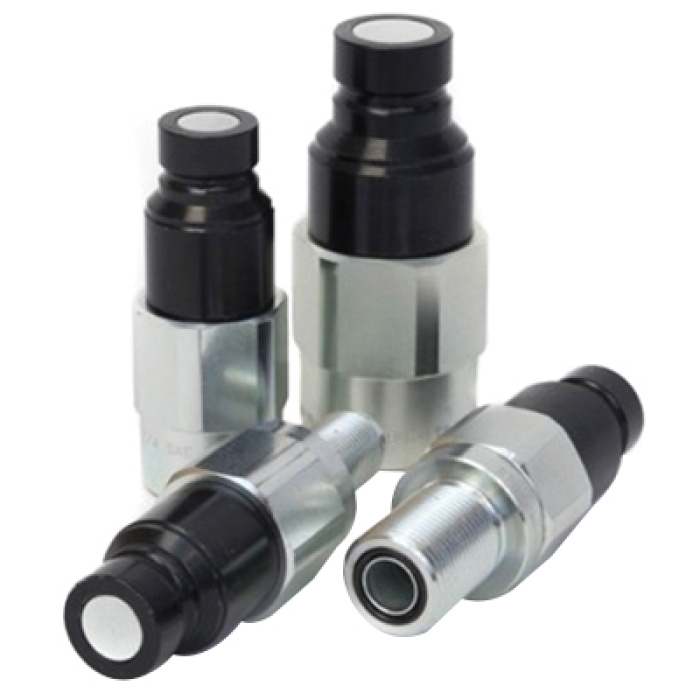

Stucchi APM Carbon Steel Flat Face Coupling

Stucchi APM Flat Face Coupling, Fitting X SAE Threaded, Carbon Steel, 4785 psi

  • ARGPN: 805204003 loading
  • Add to cart
    Add To Favorites
    • pin-int

    Stucchi Flat Face Coupling, Series: APM, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: SAE Threaded, Gender 2: Female, Connection Size 2: 5/8 in, 4785 psi, Material Construction: Carbon Steel, Dimension Standards: ISO 16028

    Connection Size 1      :      1/2 in
    Connection Size 2      :      5/8 in
    Connection Type 1      :      Fitting
    Connection Type 2      :      SAE Threaded
    Dimension Standards      :      ISO 16028
    Gender 1      :      Male
    Gender 2      :      Female
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Pressure Rating      :      4785 psi
    Series      :      APM
    Shape      :      Coupling

    The APM Series flat face couplings are state-of-the-art solutions for high residual pressure. They address residual pressure in a circuit anywhere thermal expansion of trapped fluid causes pressure to develop and connect by hand with residual pressure, without releasing any fluid into the environment. The APM is intended to relieve pressure within itself only.

    • Relieves pressure within itself only
    • Connect under high-pressure, by hand
    • Flat face design eliminates leakage and contamination in the circuit
    • Male body black zinc-plated for identification

    Applications: For mobile equipment and attachment tools, where sun exposure/temperature change causes pressure due to thermal expansion of trapped fluid, any application where static pressure can get locked into the system

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_801301012_CAT.pdf
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_805201007_SS.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_805201007_TD.pdf
