Stucchi 806501007 806501007

Stucchi 806501007

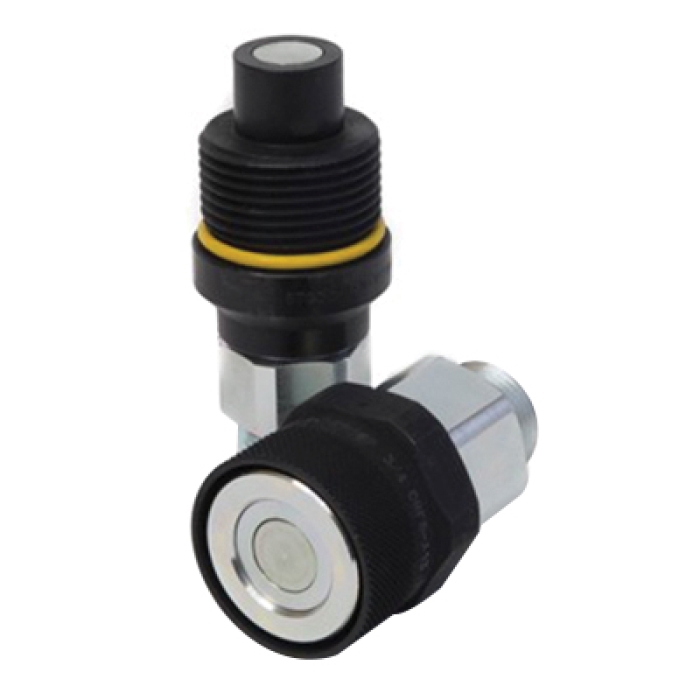

Stucchi VEP Carbon Steel Flat Face Coupling, 1 in Male Nipple x 1 in FNPT

  • Manufacturer: Stucchi USA
  • Brand: Stucchi
  • ARGPN: 806501007
  • MPN: 806501007
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Stucchi USA factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Stucchi Flat Face Coupling, Series: VEP, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: M50 x 3, Hex Size: 1.81 in, 7250 psi, Material Construction: Carbon Steel, Dimensions: 4.47 in L x 2.16 in W

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Fitting
Connection Type 2      :      NPT
Dimensions      :      4.47 in L x 2.16 in W
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      1.81 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      7250 psi
Series      :      VEP
Shape      :      Coupling
Thread Size 2      :      M50 x 3

The VEP Series is a popular solution for hydraulic circuit applications subject to high-pressure impulses and circuits which experience high residual or trapped pressure in a line. Thread-to-connect design eliminates premature wear or brinelling, a patented internal valve allows connection/disconnection with high residual pressures and the flat face design avoids loss of hydraulic fluid and contamination into the circuit. A yellow o-ring indicator makes the VEP Series even easier to work with.

  • Interchanges with VEPHD, VEPHDL Series
  • Connect/disconnect up to 25 MPa/3625 psi residual pressure
  • Eliminates brinelling, reduces leakage
  • Saves time changing tool
  • All construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure

Applications: For all large equipment needing junction points in circuit cranes, drilling machines, oil field, well head drives, porta-power, excavators with auxiliary line for attachments thumbs, grapples, hammers, compactors/hopaks

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_801301012_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_806501000_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_806501000_TD.pdf
