Super Swivels® 9 SS 16 FP 100 X FP 100-Z-AL 9SS16FP100XFP100-Z-A

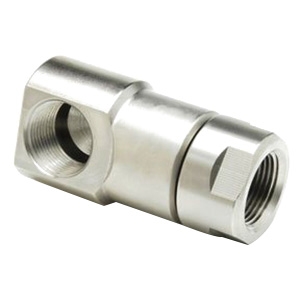

Super Swivels® Zinc-Plated Carbon Steel FNPTF 90 deg Swivel with Aflas Seal

Super Swivels® 9 SS 16 FP 100 X FP 100-Z-AL Zinc-Plated Carbon Steel 90 deg Swivel, 1 in FNPTF

  • ARGPN: 9SS16FP100XFP100-Z-A loading
    • Connection Size 1:
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Super Swivels® 90 deg Swivel, Connection Type 1: NPTF, Gender 1: Female, Connection Size 1: 1 in, Thread Size 1: 1-11-1/2, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-5/8 in, 4000 psig, Material Construction: Carbon Steel, Finish: Zinc-Plated, Dimensions: 2.162 in Dia x 4 in L

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type 1      :      NPTF
    Connection Type 2      :      NPTF
    Dimensions      :      2.162 in Dia x 4 in L
    Finish      :      Zinc-Plated
    Gender 1      :      Female
    Gender 2      :      Female
    Hex Size      :      1-5/8 in
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Pressure Rating      :      4000 psig
    Shape      :      Swivel Fitting
    Thread Size 1      :      1-11-1/2
    Thread Size 2      :      1-11-1/2

    90 deg swivels rotating joints provide free rotation on one axis with a right-angle change of path. They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping. 90 deg Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation. Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks. Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics. 90 deg Swivels sizes range from 1/8 in through 2 in body thread with numerous fittings and seal configurations.

    • Aflas® seal

    Applications: For non-corrosive applications, i.e. hydraulic, pneumatic, etc. and for service in high temperature environments (low temperature limitations) (32 to 400 deg F)

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Super_Swivels_9SS12MO12XFO12_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Super_Swivels_9SS12FP75XFP75ZAL_SS.pdf
