Synflex® 37AL-08-2-250BX 37AL-08-2-250BX

Synflex® 37AL-08-2-250BX

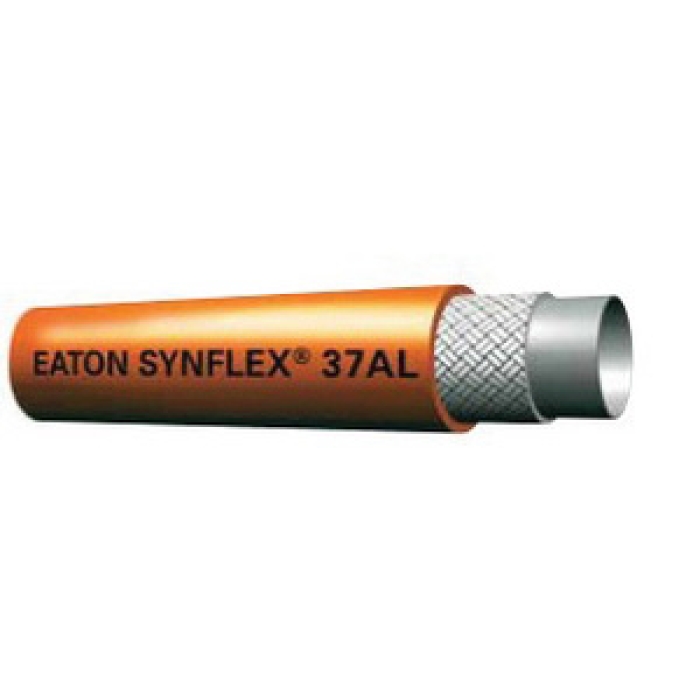

Synflex® 37AL Orange Polyester Twin-Line Non-Conductive Aerial Lift Hose, 1/2 in, 1 ft L, 2050/3000 psi

  • Manufacturer: Danfoss Power Solutions
  • Brand: Synflex®
  • ARGPN: 37AL-08-2-250BX
  • MPN: 37AL-08-2-250BX
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Synflex® Twin-Line Non-Conductive Aerial Lift Hose, Series: 37AL, Nominal Size: 1/2 in, Dash Size: 08, 0.82 in OD, 1/2 in ID, 21 ft Length, 2050/3000 psi, SAE Rating: SAE 100R7, Material Construction: Co-Polyester, Polyurethane Cover, Construction: Braided Synthetic Fiber, Orange, 2-3/4 in Bend Radius, -65 deg F Low, 212 deg F High

Bend Radius      :      2-3/4 in
Color      :      Orange
Construction      :      Braided Synthetic Fiber
Cover Material      :      Polyurethane
Dash Size      :      08
Inside Diameter      :      1/2 in
Length      :      250 ft
Material      :      Polyester
Material Construction      :      Co-Polyester
Nominal Size      :      1/2 in
Outside Diameter      :      0.82 in
Pressure Rating      :      2050/3000 psi
Product Type      :      Aerial Lift Hose
SAE Rating      :      SAE 100R7
Series      :      37AL
Temperature High      :      212 deg F
Temperature Low      :      -65 deg F
  • Less than 50 uA leakage when subjected to 75000 V/ft for 5 min
  • Low volumetric expansion - less than +/-2%

Applications: For electric utility truck, hydraulic systems, mobile equipment (pickers, utility vehicles)

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_37AL-06-2-250BX_CAT.pdf
