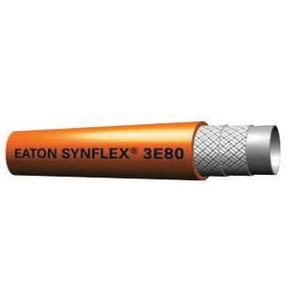

Synflex® 3E80 Orange Nylon Non-Conductive Hose
The Synflex® Non-Conductive Hose, Series 3E80, is a versatile and durable solution for high-pressure hydraulic systems where non-conductivity is essential. Constructed with a nylon inner tube and a non-perforated polyurethane cover, this hose offers excellent resistance to abrasion, UV exposure, and harsh environmental conditions. Reinforced with braided synthetic fiber, it supports pressures up to 5,100 psi while maintaining flexibility with down to 2-inch bend radius. Operating effectively within a temperature range of -40°F to 212°F, the 3E80 is ideal for hydraulic systems in aerial equipment, mobile machinery, and rescue tools, ensuring safety and performance in critical applications.
-
ARGPN: 3E80-04-250BX
-
-
Nominal Size:
-
Inside Diameter:
-
Nominal Size:
Synflex® Non-Conductive Hose, Series: 3E80, Nominal Size: 1/4 in, Dash Size: 04, 0.63 in OD, 1/4 in ID, 21 ft Length, 5100 psi, SAE Rating: SAE 100R8, Material Construction: Nylon, Non-Perforated Polyurethane Cover, Construction: Braided Synthetic Fiber, Orange, 2 in Bend Radius, -40 deg F Low, 212 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 2 in |
| Color | : | Orange |
| Construction | : | Braided Synthetic Fiber |
| Cover Material | : | Non-Perforated Polyurethane |
| Dash Size | : | 04 |
| Inside Diameter | : | 1/4 in |
| Length | : | 250 ft |
| Material | : | Nylon |
| Material Construction | : | Nylon |
| Nominal Size | : | 1/4 in |
| Outside Diameter | : | 0.63 in |
| Pressure Rating | : | 5100 psi |
| Product Type | : | Thermoplastic Hose |
| SAE Rating | : | SAE 100R8 |
| Series | : | 3E80 |
| Temperature High | : | 212 deg F |
| Temperature Low | : | -40 deg F |
Applications: General hydraulic systems, aerial equipment, mobile machinery and rescue tools
