Synflex® 3R80-04-250BX 3R80-04-250BX

Synflex® 3R80-04-250BX

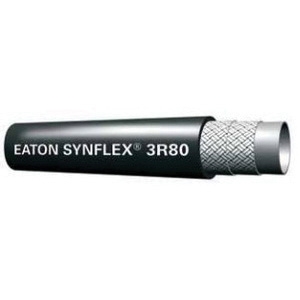

Synflex® 3R80 Black Nylon High-Pressure Thermoplastic Hose, 1/4 in, 1 ft L, 5100 psi

pin-int

Synflex® High-Pressure Thermoplastic Hose, Series: 3R80, Nominal Size: 1/4 in, Dash Size: 04, 0.59 in OD, 1/4 in ID, 21 ft Length, 5100 psi, SAE Rating: SAE 100R8, Material Construction: Nylon, Perforated Polyurethane Cover, Construction: Braided Synthetic Fiber, Black, 2 in Bend Radius, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      2 in
Color      :      Black
Construction      :      Braided Synthetic Fiber
Cover Material      :      Perforated Polyurethane
Dash Size      :      04
Inside Diameter      :      1/4 in
Length      :      250 ft
Material      :      Nylon
Material Construction      :      Nylon
Nominal Size      :      1/4 in
Outside Diameter      :      0.59 in
Pressure Rating      :      5100 psi
Product Type      :      Thermoplastic Hose
SAE Rating      :      SAE 100R8
Series      :      3R80
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F

Applications: General hydraulic systems, hydraulic tools, mobile equipment, high-pressure chemical transfer
