Synflex® 3V10-06-250BX 3V10-06003

Synflex® 3V10-06-250BX

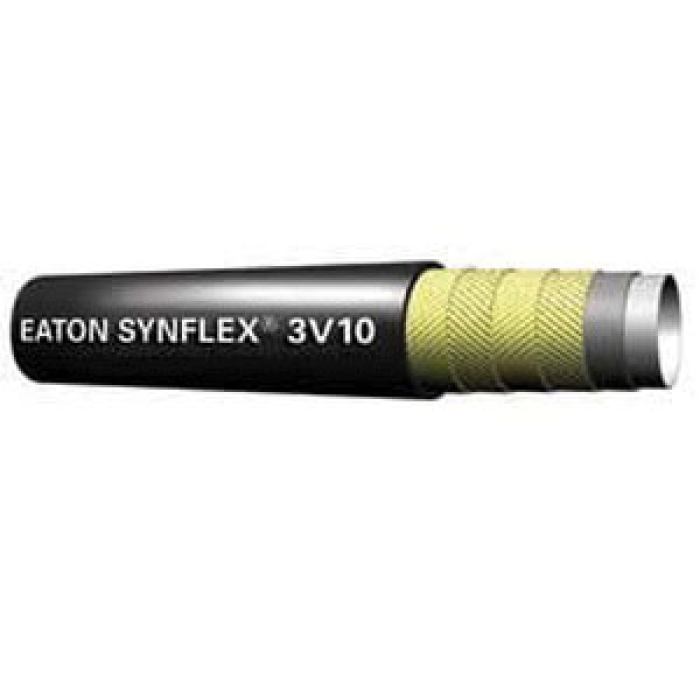

Synflex® 3V10 Black Nylon Very High-Pressure Hose, 3/8 in, 1 ft L, 8000 psi

pin-int

Synflex® Very High-Pressure Hose, Series: 3V10, Nominal Size: 3/8 in, Dash Size: 06, 0.78 in OD, 0.37 in ID, 0.2 in Thick Wall, 21 ft Length, 8000 psi, Material Construction: Nylon, Polyurethane Cover, Construction: Spiralled High-Tensile Aramid Fiber, Black, 3 in Bend Radius, -40 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3 in
Color      :      Black
Construction      :      Spiralled High-Tensile Aramid Fiber
Cover Material      :      Polyurethane
Dash Size      :      06
Inside Diameter      :      0.37 in
Length      :      250 ft
Material      :      Nylon
Material Construction      :      Nylon
Nominal Size      :      3/8 in
Outside Diameter      :      0.78 in
Pressure Rating      :      8000 psi
Product Type      :      Thermoplastic Hose
Series      :      3V10
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F
  • Low volumetric expansion - less than +/-2%
  • Lightweight
  • Compact size
  • Low elongation
  • Co-extruded nylon-lined core tube

Applications: High pressure hydraulic tools, rescue equipment and tools and high pressure test equipment

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3V10-06003_CAT.pdf

Complete Your Assembly
