Synflex® 3V10-04-250BX 3V10-04003

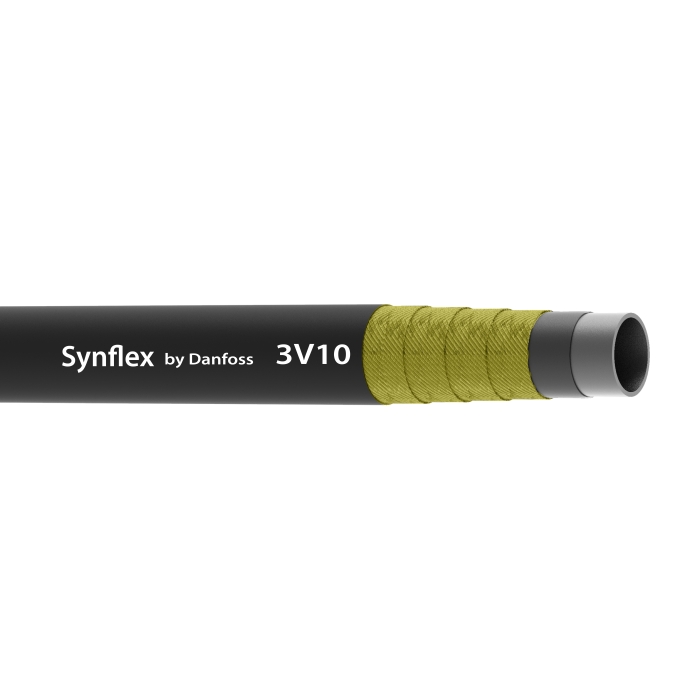

Synflex® 3V10 Nylon Very High-Pressure Hose

The Synflex® Very High-Pressure Hose, Series 3V10, is a compact and lightweight solution for demanding high-pressure applications. Designed with a co-extruded nylon-lined core tube and a polyurethane cover, this hose offers exceptional durability and resistance to abrasion, ensuring reliable performance in tough environments. Reinforced with spiraled high-tensile aramid fiber, it handles pressures up to 10,000 psi while maintaining low elongation and volumetric expansion of less than ±2%. With a bend radius down to 1.5 inches and a temperature range of -40°F to 150°F, the 3V10 is ideal for hydraulic tools, rescue equipment, and high-pressure test systems.

pin-int

Synflex® Very High-Pressure Hose, Series: 3V10, Nominal Size: 1/4 in, Dash Size: 04, 0.6 in OD, 1/4 in ID, 0.175 in Thick Wall, 21 ft Length, 10000 psi, Material Construction: Nylon, Polyurethane Cover, Construction: Spiralled High-Tensile Aramid Fiber, Black, 2-1/2 in Bend Radius, -40 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      2-1/2 in
Color      :      Black
Construction      :      Spiralled High-Tensile Aramid Fiber
Cover Material      :      Polyurethane
Dash Size      :      04
Inside Diameter      :      1/4 in
Length      :      250 ft
Material      :      Nylon
Material Construction      :      Nylon
Nominal Size      :      1/4 in
Outside Diameter      :      0.6 in
Pressure Rating      :      10000 psi
Product Type      :      Thermoplastic Hose
Series      :      3V10
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.175 in
  • Low volumetric expansion - less than +/-2%
  • Lightweight
  • Compact size
  • Low elongation
  • Co-extruded nylon-lined core tube

Applications: High pressure hydraulic tools, rescue equipment and tools and high pressure test equipment

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3V10-03-250BX_CAT.pdf
