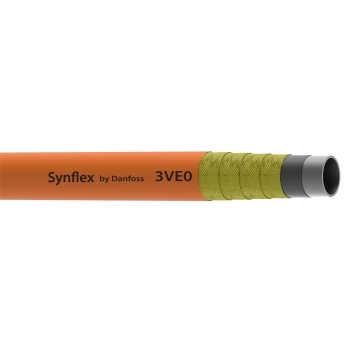

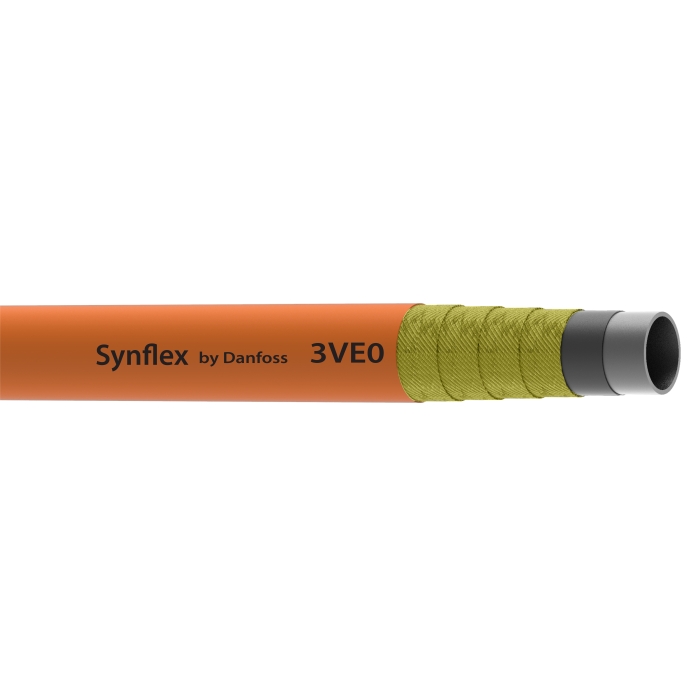

Synflex® 3VE0-04-250BX 3VE0-04003

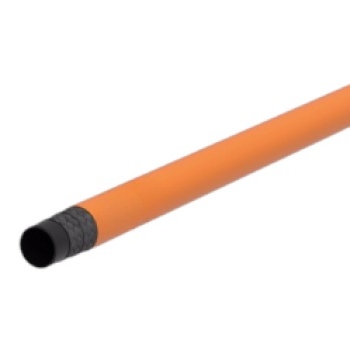

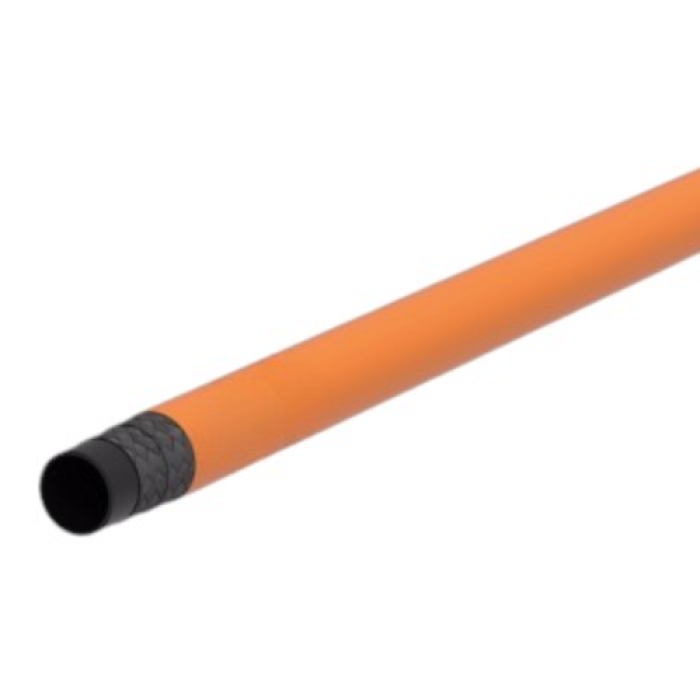

Synflex® 3VE0 Orange Nylon-Lined Very High-Pressure Non-Conductive Hose

The Synflex® Very High-Pressure Non-Conductive Hose, Series 3VE0, is purpose-built for applications where high pressure and non-conductivity are critical. With a nylon-lined core tube and a non-perforated polyurethane cover, this hose offers excellent abrasion and UV resistance, ensuring long-lasting durability in demanding environments. Reinforced with 4-spiral high-tensile aramid fiber, it handles pressures up to 8,000 psi while maintaining low elongation and compact size. Designed for safety, the hose exhibits less than 50 µA leakage when subjected to 75,000 V/ft for 5 minutes, meeting SAE J517 standards. Operating efficiently within a temperature range of -40°F to 150°F and down to a 1 1/2-inch bend radius, it is ideal for hydraulic systems near high voltage sources, rescue equipment, mobile machinery, and aerial equipment.

pin-int

Synflex® Very High-Pressure Non-Conductive Hose, Series: 3VE0, Nominal Size: 1/4 in, Dash Size: 04, 0.59 in OD, 1/4 in ID, 0.175 in Thick Wall, 21 ft Length, 10000 psi, SAE Rating: SAE J517, Material Construction: Nylon-Lined, Non-Perforated Polyurethane Cover, Construction: 4-Spiral High-Tensile Aramid Fiber, Orange, 2-1/2 in Bend Radius, Resistance Properties: Abrasion, UV, -10 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      2-1/2 in
Color      :      Orange
Construction      :      4-Spiral High-Tensile Aramid Fiber
Cover Material      :      Non-Perforated Polyurethane
Dash Size      :      04
Inside Diameter      :      1/4 in
Length      :      250 ft
Material      :      Nylon
Material Construction      :      Nylon-Lined
Nominal Size      :      1/4 in
Outside Diameter      :      0.59 in
Pressure Rating      :      10000 psi
Product Type      :      Thermoplastic Hose
Resistance Properties      :      Abrasion, UV
SAE Rating      :      SAE J517
Series      :      3VE0
Temperature High      :      150 deg F
Temperature Low      :      -10 deg F
Wall Thickness      :      0.175 in
  • Less than 50 uA leakage when subjected to 75000 V/ft for 5 min
  • Compact size
  • Low elongation
  • Nylon-lined core tube

Applications: General hydraulic systems that may contact high voltage sources, rescue equipment and tools, mobile machinery and aerial equipment, designed for permanent high-pressure fittings with hose guards

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3VE0-03003_CAT.pdf
