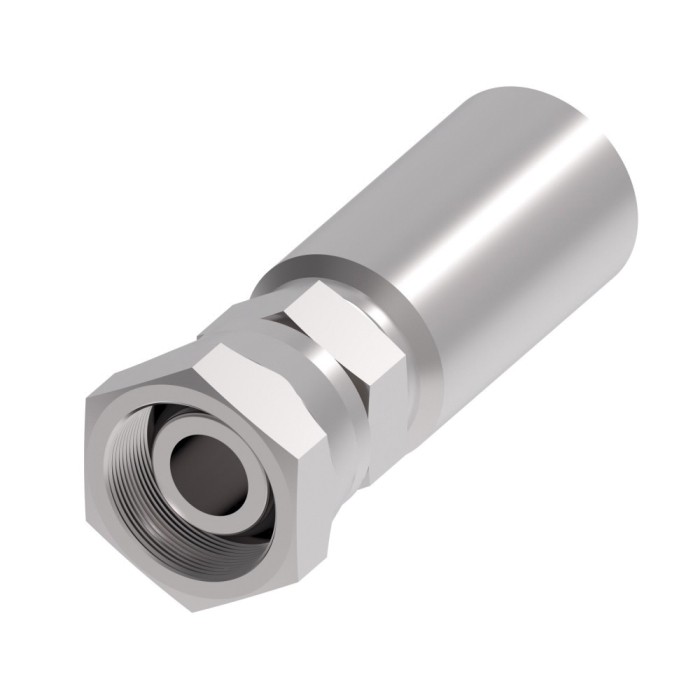

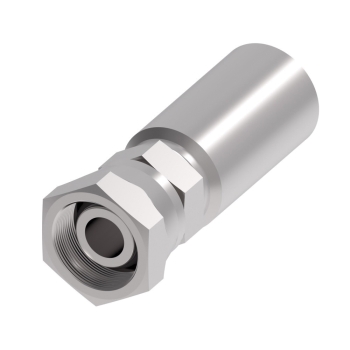

Synflex® 7903 Swage Straight Hose Fitting, Hose X BSPP 60 deg Cone Swivel, Plated, Steel
Click here
Synflex® Swage Straight Hose Fitting, Series: 7903, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: BSPP 60 deg Cone Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 0.866 x 1.062 in, Cut-Off Factor: 1.67 in, Material Construction: Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: Medium Pressure Hose, Dimensions: 3.23 in L
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type | : | Hose~BSPP Female Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | BSPP 60 deg Cone Swivel |
| Cut-Off Factor | : | 1.67 in |
| Dimensions | : | 3.23 in L |
| Finish | : | Zinc Clear Trivalent Chromate |
| Fitting Type | : | Straight Hose Fitting |
| For Use With | : | Medium Pressure Hose |
| Gender 2 | : | Female |
| Hex Size | : | 0.866 x 1.062 in |
| Hose Dash Size | : | 08 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Nominal Size | : | 1/2 in |
| Series | : | 7903 |
| Shape | : | Straight |
| Thread Size 2 | : | 1/2-14 |
