Synflex® 90V03-045400-0 90V03-045400-0

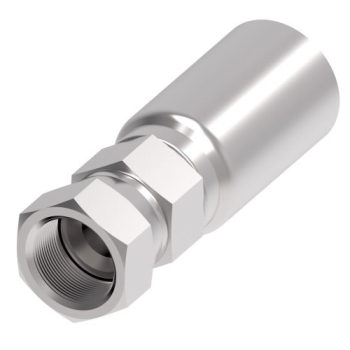

Synflex® 90V Zinc Clear Trivalent Chromate Carbon Steel Female JIC/SAE 37 deg Swivel Permanent Swage Straight Hose Fitting

Synflex® 90V Permanent Swage Straight Hose Fitting, Hose X SAE 37 deg JIC Swivel, Zinc Clear Trivalent Chromate, Carbon Steel

  • ARGPN: 90V03-045400-0 loading
  • Add to cart
    Add To Favorites
    • pin-int

    Synflex® Permanent Swage Straight Hose Fitting, Series: 90V, Connection Type 1: Hose, Connection Size 1: 3/16 in, Hose Dash Size: 03, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 9/16 x 5/8 in, Cut-Off Factor: 1.35 in, Material Construction: Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: 3V10 and 3EV0 Hoses, Dimensions: 2.15 in L x 0.687 in W x 0.687 in H

    Connection Size 1      :      3/16 in
    Connection Size 2      :      1/4 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 37 deg JIC Swivel
    Cut-Off Factor      :      1.35 in
    Dimensions      :      2.15 in L x 0.687 in W x 0.687 in H
    Finish      :      Zinc Clear Trivalent Chromate
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      3V10 and 3EV0 Hoses
    Gender 2      :      Female
    Hex Size      :      9/16 x 5/8 in
    Hose Dash Size      :      03
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      1/4 in
    Series      :      90V
    Shape      :      Straight
    Thread Size 2      :      7/16-20
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_90V03-045400-0_CAT.pdf
