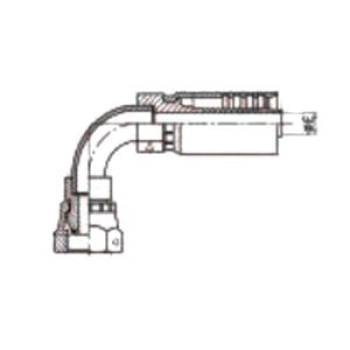

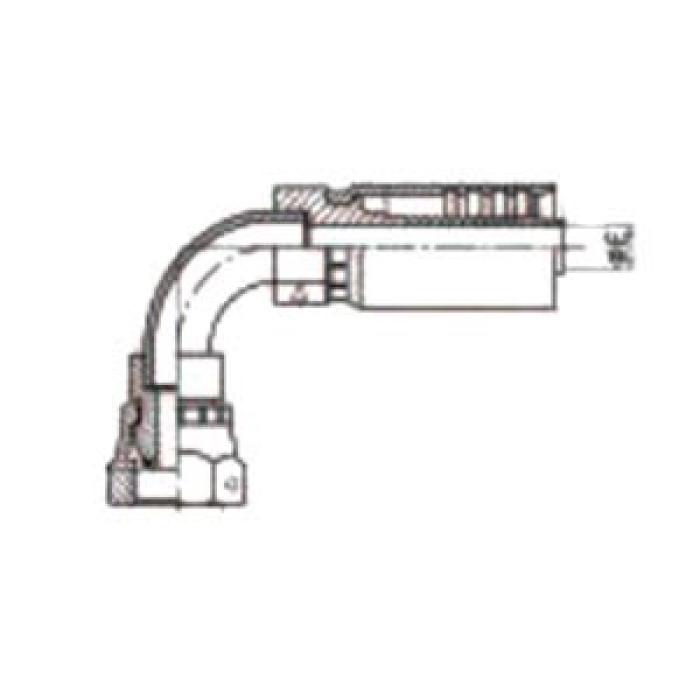

Synflex® 7903 Permanent Attached Hose 90 deg Elbow, Hose X BSP O-Ring Swivel
Click here
Synflex® Permanent Attached Hose 90 deg Elbow, Series: 7903, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: BSP O-Ring Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 1/4-19, Hex Size: 17 x 19 mm, For Use With: R7 Hose
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type | : | Hose~BSPP Female Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | BSP O-Ring Swivel |
| Fitting Type | : | 90 deg Elbow |
| For Use With | : | R7 Hose |
| Gender 2 | : | Female |
| Hex Size | : | 17 x 19 mm |
| Hose Dash Size | : | 04 |
| Nominal Size | : | 1/4 in |
| Series | : | 7903 |
| Shape | : | 90 deg Elbow |
| Thread Size 2 | : | 1/4-19 |
