Synflex® 3TR7N-08-2-250BX 3TR7N-08-2-250BX

Synflex® 3TR7N-08-2-250BX

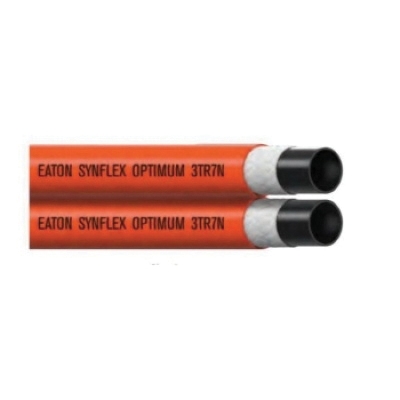

Synflex® Optimum 3TR7N Orange Nylon Twin-Line Medium-Pressure Non-Conductive Hydraulic Hose, 1/2 in, 1 ft L, 2050 psi

  • Manufacturer: Danfoss Power Solutions
  • Brand: Synflex®
  • ARGPN: 3TR7N-08-2-250BX
  • MPN: 3TR7N-08-2-250BX
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Synflex® Optimum Twin-Line Medium-Pressure Non-Conductive Hydraulic Hose, Series: 3TR7N, Nominal Size: 1/2 in, Dash Size: 08, 0.82 in OD, 1/2 in ID, 21 ft Length, 2050 psi, SAE Rating: SAE 100R7, Material Construction: Nylon, Polyurethane Cover, Construction: 1-Ply Braid, Orange, 2-1/2 in Bend Radius, Resistance Properties: Abrasion, Chemical, Ozone, UV, -40 deg F Low, 212 deg F High

Bend Radius      :      2-1/2 in
Color      :      Orange
Construction      :      1-Ply Braid
Cover Material      :      Polyurethane
Dash Size      :      08
Inside Diameter      :      1/2 in
Length      :      250 ft
Material      :      Nylon
Material Construction      :      Nylon
Nominal Size      :      1/2 in
Outside Diameter      :      0.82 in
Pressure Rating      :      2050 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion, Chemical, Ozone, UV
SAE Rating      :      SAE 100R7
Series      :      3TR7N
Sub Brand      :      Optimum
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
Danfoss Synflex® Optimum thermoplastic hydraulic hoses and fittings empower OEMs to reimagine design. Our system engineered portfolio offers streamlined product configurations that make it easy-to find the perfect combination for every application. And our commitment to innovation includes the design and technical support needed to develop more efficient, safe and productive systems. The thermoplastic polyurethane and polyester outer cover resists ozone, ultraviolent light and aging Danfoss Synflex® Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking Ability to mold into configurations that match system design The new TPU and polyester cover increases abrasion-resistant by 10% Lift and handle heavy loads with hose power Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids Lightweight hose design drives performance efficiencies, reducing vehicle power requirements Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose Synflex® thermoplastic hoses can be permanently joined without the use of any mechanical devices Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system Special reinforcements on the thermoplastic hoses help reduce machine noise Applications: For general hydraulics, material handling, chemical transfer and marine steering
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_3TR7N082250BX_CAT.pdf
