Thermoid® 00521804205 WELDGREEN-T-025

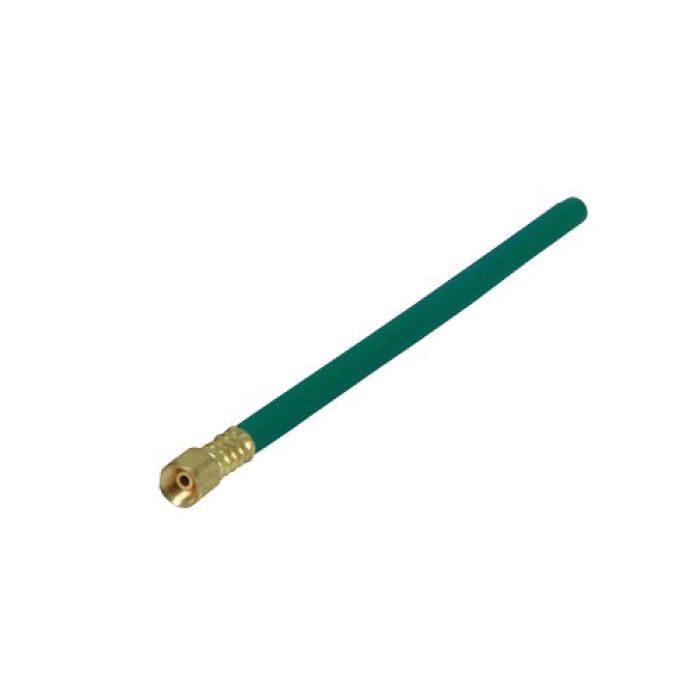

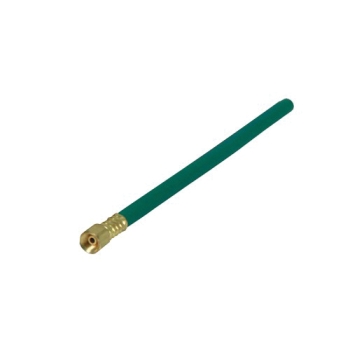

Thermoid® EPDM Type S Single Line Welding Hose

Thermoid® Type S Single Line Welding Hose is a lightweight and flexible solution for welding applications, featuring a heat-resistant EPDM tube and cover. Its multi-spiral construction ensures maximum kink resistance, while the corrugated design enhances flexibility and ease of handling. With a pressure rating of 200 psi and a temperature range of -40°F to 180°F, this abrasion-, heat-, ozone-, weather-, and kink-resistant hose is ideal for safe and reliable performance.

  • ARGPN: WELDGREEN-T-025 loading
  • Add to cart
    Add To Favorites
    • pin-int

    Thermoid® Type S Single Line Welding Hose, Nominal Size: 1/4 in, 0.53 in OD, 1/4 in ID, 1 ft Length, 200 psi, Material Construction: EPDM, Green, 1-1/2 in Bend Radius, Resistance Properties: Abrasion, Heat, Kink, Ozone, Weather, -40 deg F Low, 180 deg F High

    Attribute Type Configurator      :      Parent
    Bend Radius      :      1-1/2 in
    Color      :      Green
    Inside Diameter      :      1/4 in
    Length      :      700 ft
    Material      :      EPDM
    Material Construction      :      EPDM
    Nominal Size      :      1/4 in
    Outside Diameter      :      0.53 in
    Pressure Rating      :      200 psi
    Product Type      :      Welding Hose
    Resistance Properties      :      Abrasion, Heat, Kink, Ozone, Weather
    Temperature High      :      180 deg F
    Temperature Low      :      -40 deg F

    The Flex Strength® single line corrugated welding hose is lightweight, flexible and available from stock in a wide range of sizes. The hoses come in two popular grades, R and T. Both grades come in single line and tuline styles, with or without corrugated covers. Each of these styles and grades feature multi-spiral construction for maximum kink-resistance. The grade R hose features an EPDM tube and cover that are heat-resistant.

    • More flexible than braid reinforced hose
    • Easier to route assemblies
    • Easier to coil and handle
    • Less susceptible to premature failure than braided hose if subjected to torque
    • Extends the life of the rubber compounds
    • No internal contamination of the inside diameter due to the lubricant
    • Eliminates the need for the customer to flush the hose
    • Disperses permeating gases
    • Enhances welder's safety
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Thermoid_00521803205_SS.pdf
