Tramec Sloan S68PMT-6-4 PCD68-6-4

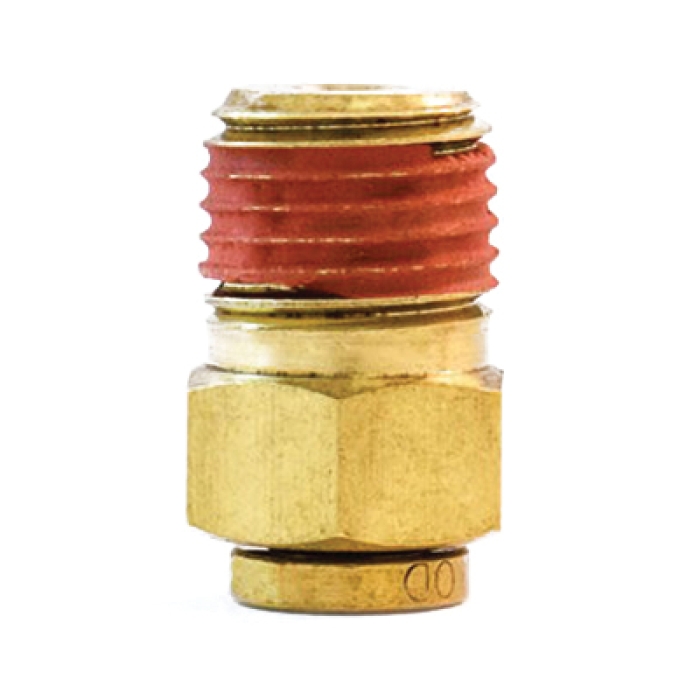

Tramec Sloan S68PMT Brass Reducing Connector

Tramec Sloan Reducing Connector, Series S68PMT, offers a secure push-to-connect assembly for SAE J844 air brake tubing. Featuring a push-to-connect fitting on one end and a male NPT connection on the other, this brass connector allows seamless adaptation between different tubing and thread sizes. Designed to resist mechanical pull-out and enable repeated assembly and disassembly, it includes a swivel function for installation purposes only. With a pressure rating of 145 psi and a temperature range of -40°F to 225°F, it delivers reliable performance in demanding air brake applications.

  • Add to cart
    Add To Favorites
    • pin-int

    Tramec Sloan Reducing Connector, Series: S68PMT, Connection Type 1: Push-to-Connect, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/4 in, 145 psi, Material Construction: Brass, -40 to 225 deg F, For Use With: SAE J844 Air Brake Tubing

    Connection Size 1      :      3/8 in
    Connection Size 2      :      1/4 in
    Connection Type 1      :      Push-to-Connect
    Connection Type 2      :      NPT
    For Use With      :      SAE J844 Air Brake Tubing
    Gender 2      :      Male
    Industry Category      :      Brass Fittings
    Material      :      Brass
    Material Construction      :      Brass
    Pressure Rating      :      145 psi
    Series      :      S68PMT
    Shape      :      Reducing Connector
    Temperature Rating      :      -40 to 225 deg F
    • Easy to assemble
    • Designed to resist mechanical pull-out
    • Can be assembled and disassembled over and over again
    • Swivel for installation purposes only
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Tramec Sloan_S62PMT-10_SS.pdf
