Weatherhead® 24706N-B06 24706N-B06

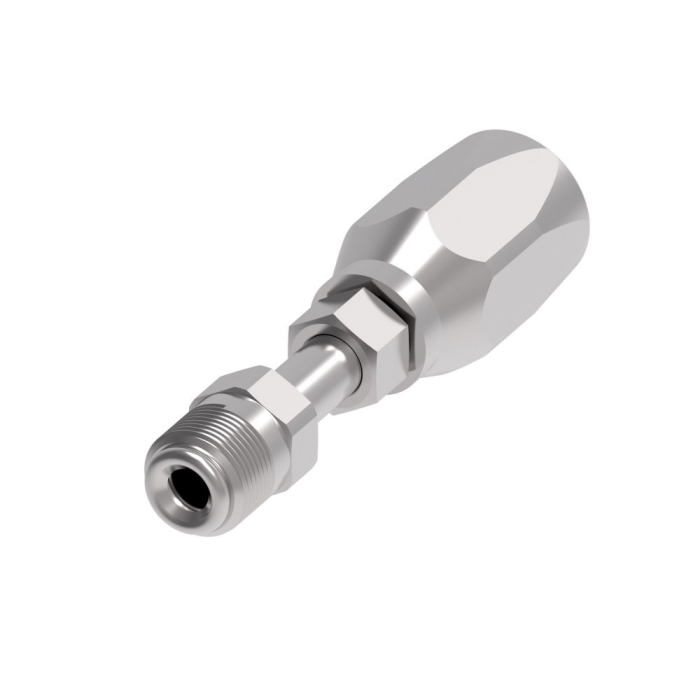

Weatherhead® 247 N Zinc Clear Trivalent Chromate Carbon Steel Male Inverted Swivel Field Attachable Reusable Hose End

Weatherhead® 247 N Field Attachable Reusable Hose End, Hose X Inverted Swivel, Zinc Clear Trivalent Chromate, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® Field Attachable Reusable Hose End, Series: 247 N, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: Inverted Swivel, Gender 2: Male, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 13/16 x 5/8 in, Cut-Off Factor: 2 in, Material Construction: Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: H059, H069, H166, H169, H229, H366, and H569 Hoses, Dimensions: 2.72 in L x 1.3 in W x 1.3 in H, Dimension Standards: SAE 100R5

    Connection Size 1      :      5/16 in
    Connection Size 2      :      3/8 in
    Connection Type      :      Hose~Inverted Flare Male Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      Inverted Swivel
    Cut-Off Factor      :      2 in
    Dimension Standards      :      SAE 100R5
    Dimensions      :      2.72 in L x 1.3 in W x 1.3 in H
    Finish      :      Zinc Clear Trivalent Chromate
    Fitting Type      :      Hose End
    For Use With      :      H059, H069, H166, H169, H229, H366, and H569 Hoses
    Gender 2      :      Male
    Hex Size      :      13/16 x 5/8 in
    Hose Dash Size      :      05
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      3/8 in
    Series      :      247 N
    Shape      :      Straight
    Thread Size 2      :      5/8-18
    • Very popular in heavy-duty truck markets
    • Good selection of hose ends
    • Compatible with a wide variety of hose-type allowing for a diverse number of applications
    • Non-mandrel assembly

    Applications: For a variety of applications including truck, industrial and small engine

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_24704N-B04_CAT.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_24704N-B04_TD.pdf
