Weatherhead® by Danfoss H06905-250R H06905-250R

Weatherhead® by Danfoss H06905-250R

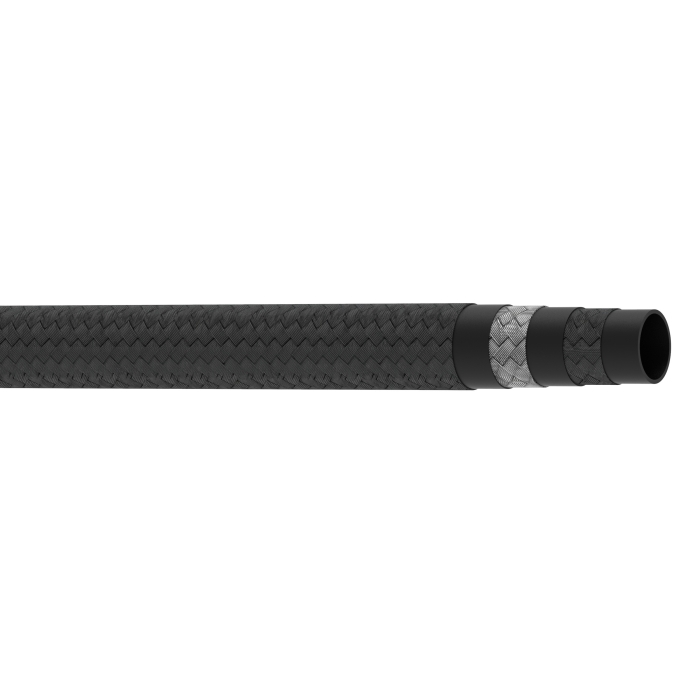

Weatherhead® H069 Black Nitrile General-Purpose Truck and Hydraulic Air Brake Hose, 1/4 in, 1 ft L, 3000 psi

pin-int

Weatherhead® General-Purpose Truck and Hydraulic Air Brake Hose, Series: H069, Nominal Size: 1/4 in, Dash Size: 05, 0.58 in OD, 1/4 in ID, 0.33 in Thick Wall, 1 ft Length, 3000 psi, Material Construction: Nitrile, Polyester Braid Cover, Construction: 1-Fiber and 1-Steel Braid, Black, 3.39 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 200 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3.39 in
Color      :      Black
Construction      :      1-Fiber and 1-Steel Braid
Cover Material      :      Polyester Braid
Dash Size      :      05
Inside Diameter      :      1/4 in
Length      :      250 ft
Material      :      Nitrile
Material Construction      :      Nitrile
Nominal Size      :      1/4 in
Outside Diameter      :      0.58 in
Pressure Rating      :      3000 psi
Product Type      :      Air Brake Hose
Resistance Properties      :      Abrasion
Series      :      H069
Temperature High      :      200 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.33 in

Applications: For use in air brake, diesel fuel, grease lines, high-temperature petroleum oils and medium-pressure hydraulic applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H06904-250R_CAT.pdf
