Weatherhead® 24706N-506 24706N-506

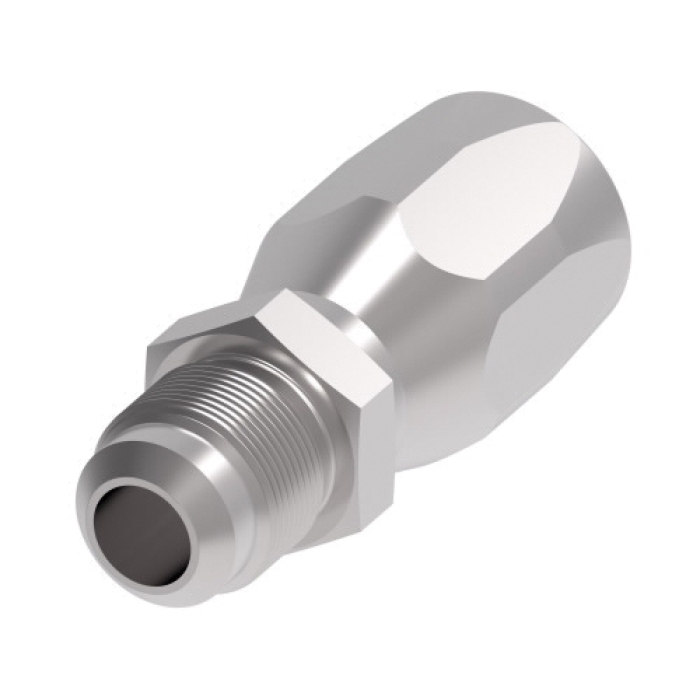

Weatherhead® 247 N Zinc Clear Trivalent Chromate Carbon Steel Male SAE 37 deg JIC Flare Field Attachable Reusable Hose End

Weatherhead® 247 N Field Attachable Reusable Hose End, Hose X SAE 37 deg JIC Flare, Zinc Clear Trivalent Chromate, Carbon Steel, 7000 psi

  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® Field Attachable Reusable Hose End, Series: 247 N, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 06, Connection Type 2: SAE 37 deg JIC Flare, Gender 2: Male, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 13/16 x 5/8 in, 7000 psi, Cut-Off Factor: 1-1/2 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H059, H069, H166, H169, H229, H366, and H569 Hoses, Dimensions: 2.13 in L x 0.81 in W x 0.81 in H, Dimension Standards: SAE 100R5

    Connection Size 1      :      5/16 in
    Connection Size 2      :      3/8 in
    Connection Type      :      Hose~JIC Male
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 37 deg JIC Flare
    Cut-Off Factor      :      1-1/2 in
    Dimension Standards      :      SAE 100R5
    Dimensions      :      2.13 in L x 0.81 in W x 0.81 in H
    Finish      :      Zinc Clear Trivalent Chromate
    Fitting Type      :      Hose End
    For Use With      :      H059, H069, H166, H169, H229, H366, and H569 Hoses
    Gender 2      :      Male
    Hex Size      :      13/16 x 5/8 in
    Hose Dash Size      :      05
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      3/8 in
    Pressure Rating      :      7000 psi
    Series      :      247 N
    Shape      :      Straight
    Thread Size 2      :      9/16-18
    • Very popular in heavy-duty truck markets
    • Good selection of hose ends
    • Compatible with a wide variety of hose types allowing for a diverse number of applications
    • Non-mandrel assembly

    Applications: For a variety of applications including truck, industrial and small engine

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_24704N-B04_CAT.pdf
    • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_24705N-505_TD.pdf
