Weatherhead® by Danfoss H03916-100 H03916-100

Weatherhead® by Danfoss H03916-100

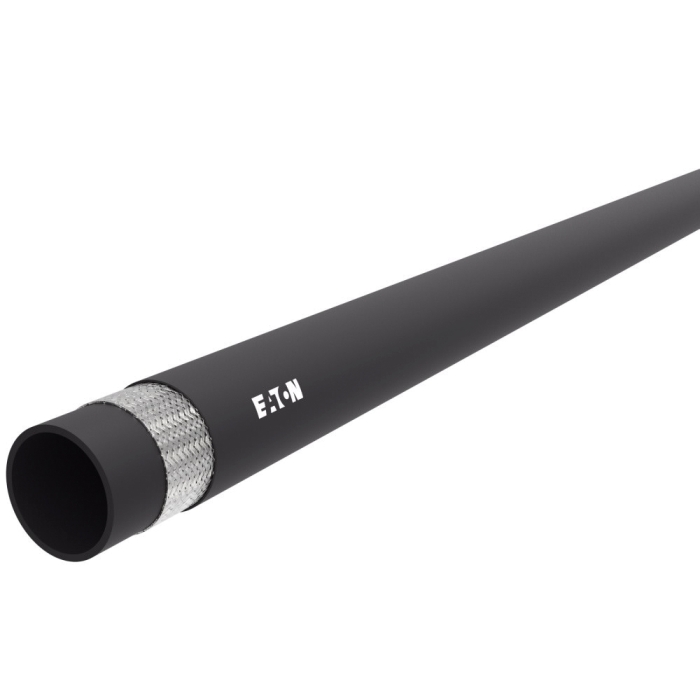

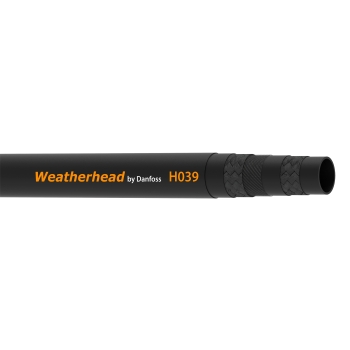

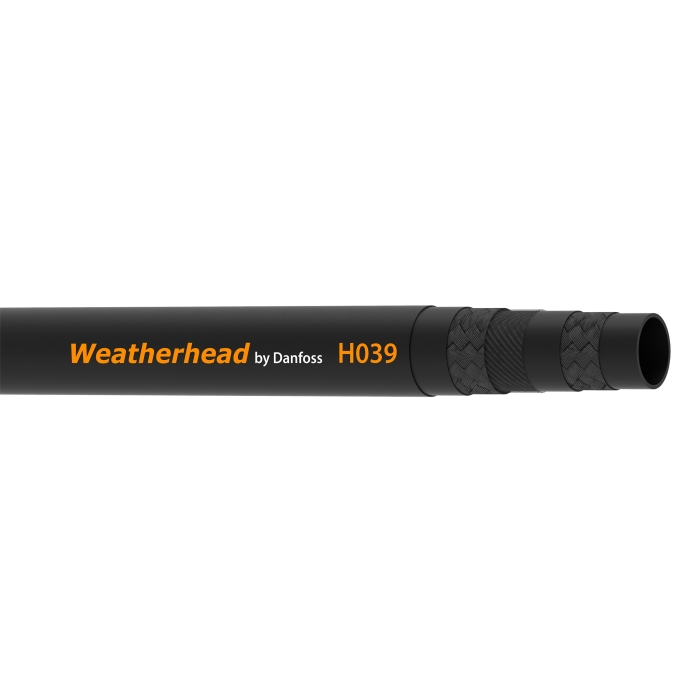

Weatherhead® H039 Black Nitrile Hydraulic Suction Hose, 1 in, 1 ft L, 250 psi

  • Manufacturer: Danfoss
  • Brand: Weatherhead® by Danfoss
  • ARGPN: H03916-100
  • MPN: H03916-100
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Weatherhead® Hydraulic Suction Hose, Series: H039, Nominal Size: 1 in, Dash Size: 16, 1-1/2 in OD, 1 in ID, 1/4 in Thick Wall, 1 ft Length, 250 psi, Material Construction: Nitrile, Neoprene Cover, Construction: 1-Helical Cable Wire between Two Textile Layers, 1-Fiber Braid, Black, 3 in Bend Radius, -40 deg F Low, 275 deg F High

Bend Radius      :      3 in
Color      :      Black
Construction      :      1-Helical Cable Wire between Two Textile Layers, 1-Fiber Braid
Cover Material      :      Neoprene
Dash Size      :      16
Inside Diameter      :      1 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      Nitrile
Nominal Size      :      1 in
Outside Diameter      :      1-1/2 in
Pressure Rating      :      250 psi
Product Type      :      Hydraulic Suction Hose
Series      :      H039
Temperature High      :      275 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      1/4 in
  • One helical wire between two textile layers and one fiber braid reinforcement
