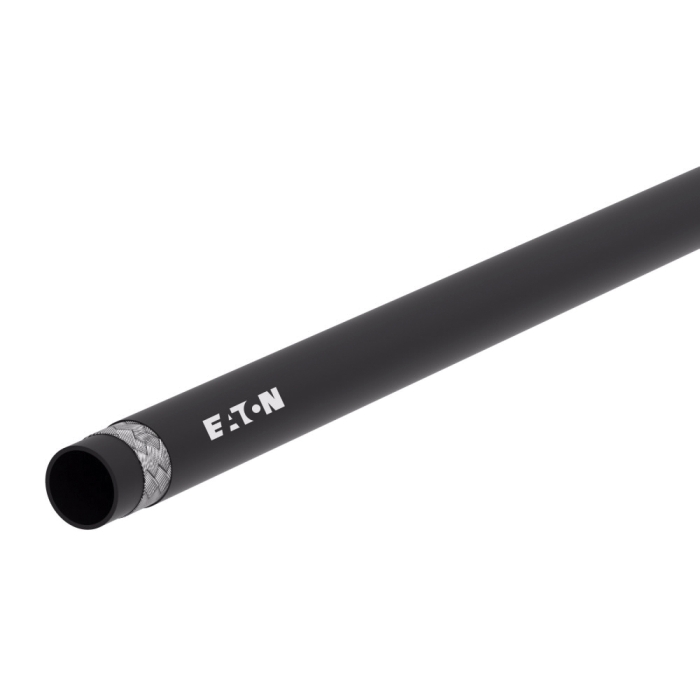

Weatherhead® H190H AQP Braided Hydraulic Hose
The Weatherhead® H190H Series is a premium high-temperature, single-wire braided hydraulic hose designed for demanding applications. Constructed with an AQP elastomer inner tube and an elastomer cover, this hose offers exceptional durability and flexibility. It is engineered to handle hydraulic fluids, water, and air, making it suitable for various industrial uses. The H190H Series operates effectively across a wide temperature range, from -40°F to 302°F (-40°C to 150°C), and supports working pressures up to 3,250 psi, depending on the hose size. Its robust construction ensures reliable performance in high-temperature environments, providing a dependable solution for your hydraulic system needs
-
ARGPN: H190H06
-
-
Nominal Size:
-
Dash Size:
-
Inside Diameter:
-
Nominal Size:
Weatherhead® Braided Hydraulic Hose, Series: H190H, Nominal Size: 3/8 in, Dash Size: 06, 0.69 in OD, 0.37 in ID, 1 ft Length, 3125 psi, SAE Rating: SAE 100R17, Material Construction: AQP Elastomer, Elastomer Cover, Construction: 1-Wire Braided, Black, 5 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 302 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 5 in |
| Color | : | Black |
| Construction | : | 1-Wire Braided |
| Cover Material | : | Elastomer |
| Dash Size | : | 06 |
| Inside Diameter | : | 0.37 in |
| Length | : | 50 ft |
| Material | : | Elastomer |
| Material Construction | : | AQP Elastomer |
| Nominal Size | : | 3/8 in |
| Outside Diameter | : | 0.69 in |
| Pressure Rating | : | 3125 psi |
| Product Type | : | Hydraulic Hose |
| Resistance Properties | : | Abrasion |
| SAE Rating | : | SAE 100R17 |
| Series | : | H190H |
| Temperature High | : | 302 deg F |
| Temperature Low | : | -40 deg F |
Applications: Transfer of hydraulic fluid, water and air
