Weatherhead® by Danfoss H36608 H36608

Weatherhead® by Danfoss H36608

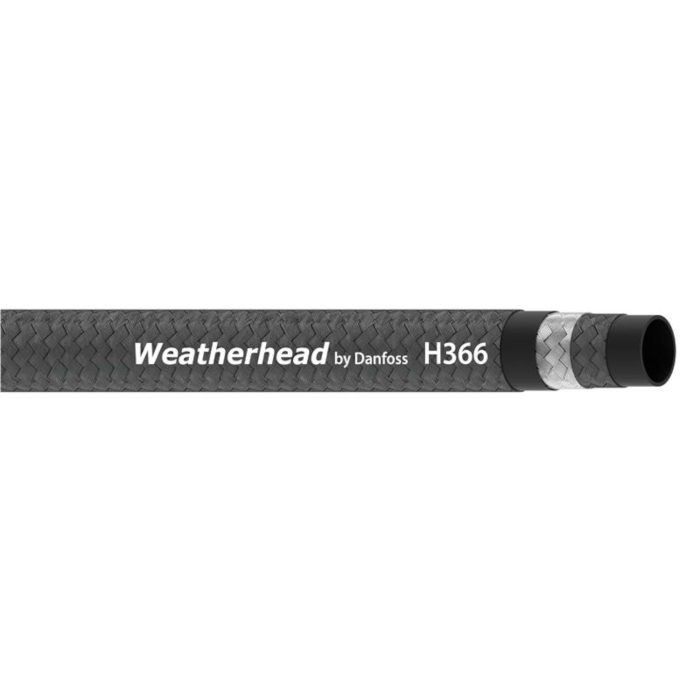

Weatherhead® H366 Black Hydraulic LPG Hose, #8, 1 ft L, 350 psi

pin-int

Weatherhead® Hydraulic LPG Hose, Series: H366, Dash Size: 08, 0.77 in OD, 0.41 in ID, 0.18 in Thick Wall, 1 ft Length, 350 psi, Polyester Braid Cover, Construction: 1-Fiber Braids and 1-Stainless Steel Braid, Black, 4.63 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 300 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      4.63 in
Color      :      Black
Construction      :      1-Fiber Braids and 1-Stainless Steel Braid
Cover Material      :      Polyester Braid
Dash Size      :      08
Inside Diameter      :      0.41 in
Length      :      50 ft
Outside Diameter      :      0.77 in
Pressure Rating      :      350 psi
Product Type      :      LPG Hose
Resistance Properties      :      Abrasion
Series      :      H366
Temperature High      :      300 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.18 in

Applications: For medium-pressure LP gas service, UL listed for LP gas applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H16906_CAT.pdf

Complete Your Assembly
