Weatherhead® by Danfoss H56906-250R H56906-250R

Weatherhead® by Danfoss H56906-250R

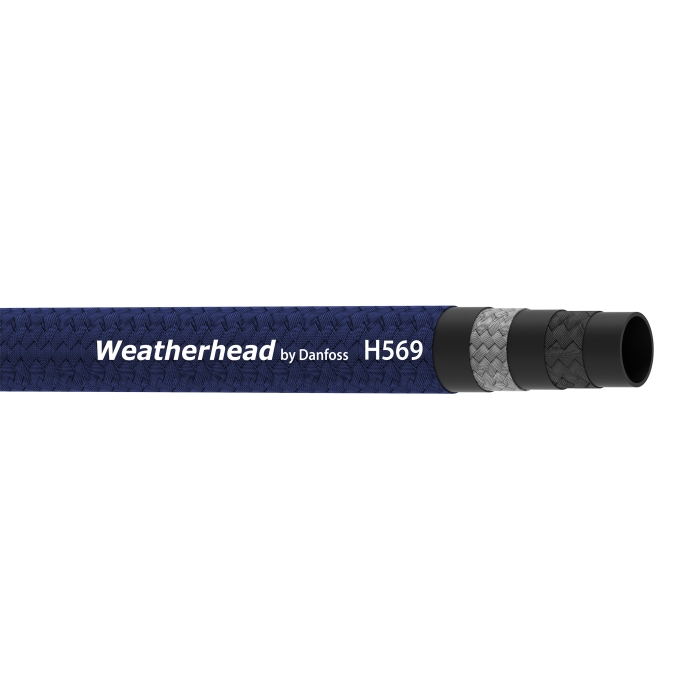

Weatherhead® H569 Blue CPE Hydraulic Air Brake Hose, 5/16 in, 1 ft L, 2250 psi

pin-int

Weatherhead® Hydraulic Air Brake Hose, Series: H569, Nominal Size: 5/16 in, Dash Size: 06, 0.67 in OD, 0.31 in ID, 0.18 in Thick Wall, 1 ft Length, 2250 psi, Material Construction: CPE, Fiber Braid Cover, Construction: 2 Fiber Braids and 1 Steel Braid, Blue, 4 in Bend Radius, Resistance Properties: Abrasion, -55 deg F Low, 302 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      4 in
Color      :      Blue
Construction      :      2 Fiber Braids and 1 Steel Braid
Cover Material      :      Fiber Braid
Dash Size      :      06
Inside Diameter      :      0.31 in
Length      :      250 ft
Material      :      Polyethylene
Material Construction      :      CPE
Nominal Size      :      5/16 in
Outside Diameter      :      0.67 in
Pressure Rating      :      2250 psi
Product Type      :      Air Brake Hose
Resistance Properties      :      Abrasion
Series      :      H569
Temperature High      :      302 deg F
Temperature Low      :      -55 deg F
Wall Thickness      :      0.18 in

Applications: For general-purpose truck, marine and hydraulic use, air brake, diesel, fuel, grease lines, high-temperature petroleum oils and medium-pressure hydraulic applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H56916-250R_CAT.pdf
