Weatherhead® by Danfoss MTP16008NA-100 MTP16008NA-100

Weatherhead® by Danfoss MTP16008NA-100

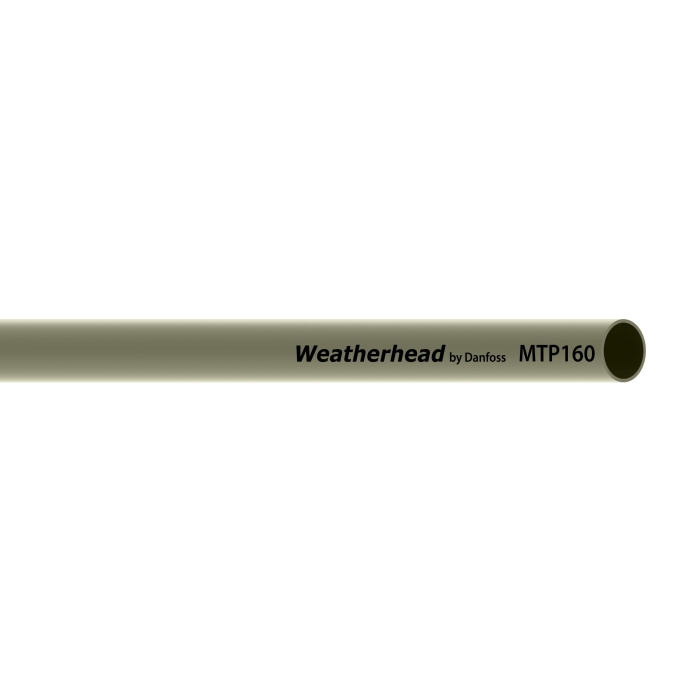

Weatherhead® MTP Natural Polyamide Tubing, 0.2359 in, 1 ft L, 250 psi Working, 1000 psi Burst, 0.039 in Wall Thick

  • Manufacturer: Danfoss
  • Brand: Weatherhead® by Danfoss
  • ARGPN: MTP16008NA-100
  • MPN: MTP16008NA-100
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Weatherhead® Tubing, Series: MTP, 0.31 in OD, 0.23 in ID, 1 ft Length, Material Construction: Polyamide, Natural, 250 psi, 0.039 in Thick Wall, 2-1/4 in Bend Radius, Resistance Properties: Chemical, Hydrocarbons, -40 to 200 deg F

Bend Radius      :      2-1/4 in
Color      :      Natural
Inside Diameter      :      0.23 in
Length      :      100 ft
Material      :      Polyamide
Material Construction      :      Polyamide
Outside Diameter      :      0.31 in
Pressure Rating      :      250 psi
Product Type      :      Tubing
Resistance Properties      :      Chemical, Hydrocarbons
Series      :      MTP
Temperature Rating      :      -40 to 200 deg F
Wall Thickness      :      0.039 in

Applications: For instrumentation, lubrication, air lines, gas, chemical, oil processing and low-pressure hydraulic

  • Warranty https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Eaton_EH22504_W.pdf
