Weatherhead® by Danfoss H145R12-250R H145R12-250R

Weatherhead® by Danfoss H145R12-250R

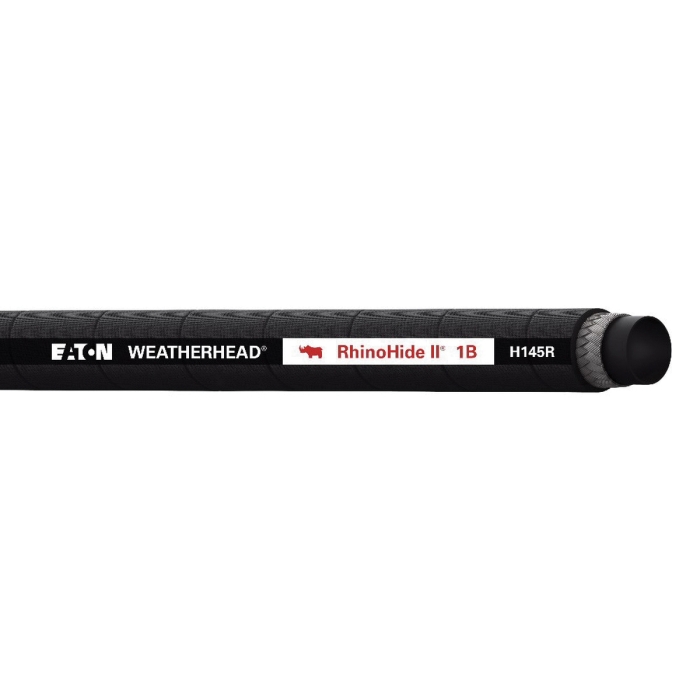

Weatherhead® RhinoHide II® H145R Black Synthetic Rubber Braided Hydraulic Hose, 3/4 in, 1 ft L, 3050 psi

  • Manufacturer: Danfoss
  • Brand: Weatherhead® by Danfoss
  • ARGPN: H145R12-250R
  • MPN: H145R12-250R
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Weatherhead® RhinoHide II® Braided Hydraulic Hose, Series: H145R, Nominal Size: 3/4 in, Dash Size: 12, 1.14 in OD, 3/4 in ID, 0.189 in Thick Wall, 21 ft Length, 3050 psi, SAE Rating: SAE 100R17, Material Construction: Synthetic Rubber, UHMWPE Cover, Construction: 2-Ply Wire Braid, Black, 4.72 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 212 deg F High

Bend Radius      :      4.72 in
Color      :      Black
Construction      :      2-Ply Wire Braid
Cover Material      :      UHMWPE
Dash Size      :      12
Inside Diameter      :      3/4 in
Length      :      250 ft
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      3/4 in
Outside Diameter      :      1.14 in
Pressure Rating      :      3050 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion
SAE Rating      :      SAE 100R17
Series      :      H145R
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.189 in

Applications: For refined petroleum-based fluids, for logging, construction, mining and other off-highway applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H14504-250R_CAT.pdf

Complete Your Assembly
