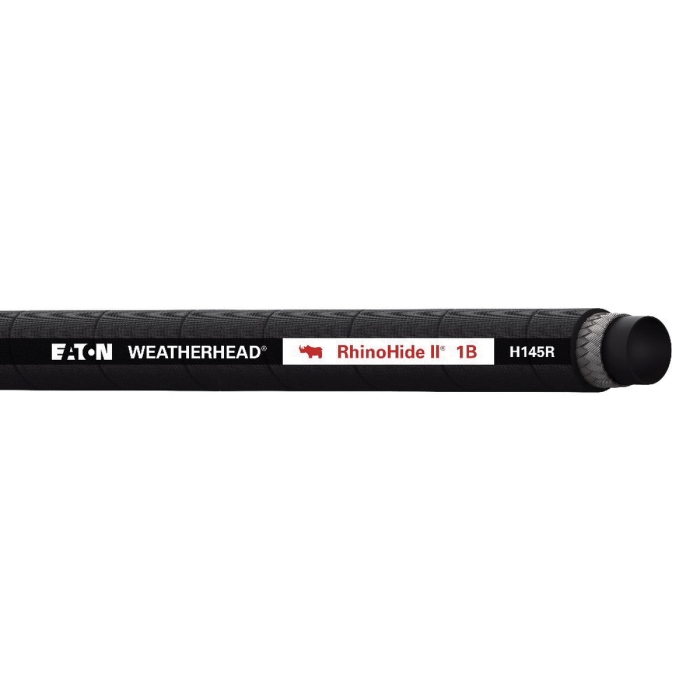

Weatherhead® RhinoHide II® H145R Synthetic Rubber Braided Hydraulic Hose

The Weatherhead® RhinoHide II® Braided Hydraulic Hose, Series H145R, is engineered for demanding applications such as logging, construction, mining, and other off-highway operations. It is compatible with refined petroleum-based fluids. This hose supports pressures up to 3,050 psi, making it suitable for rigorous hydraulic systems. Its construction features a synthetic rubber inner tube with a 1-ply wire braid reinforcement and an ultra-high molecular weight polyethylene (UHMWPE) cover, providing enhanced abrasion resistance. With a minimum bend radius of 1.97 inches, it facilitates ease of installation in tight spaces. The hose operates effectively within a temperature range of -40°F to 212°F, accommodating various environmental conditions. Additionally, it meets SAE 100R17 standards, ensuring reliability and performance.

• ARGPN: H145R06-250R
• • Nominal Size:
    • 3/4 in
      Nominal Size
      3/4 in
    • 1/4 in
      Nominal Size
      1/4 in
    • 1 in
      Nominal Size
      1 in
    • 1/2 in
      Nominal Size
      1/2 in
  • Dash Size:
    • 12
      Dash Size
      12
    • 06
      Dash Size
      06
    • 04
      Dash Size
      04
    • 16
      Dash Size
      16
    • 08
      Dash Size
      08
  • Inside Diameter:
    • 3/4 in
      Inside Diameter
      3/4 in
    • 0.38 in
      Inside Diameter
      0.38 in
    • 1/4 in
      Inside Diameter
      1/4 in
    • 1 in
      Inside Diameter
      1 in
    • 1/2 in
      Inside Diameter
      1/2 in
